50kN Hydraulic Winch

50kN Hydraulic Winch

Application

A hydraulic winch with a capacity of 50kN is a powerful tool used to pull or lift heavy loads. The winch operates using a hydraulic system, which typically includes a hydraulic motor, pump, and reservoir. 50kN hydraulic winch is a powerful and versatile tool that can help make heavy lifting and pulling tasks easier and more efficient. When using a hydraulic winch, it is important to ensure that the load being pulled or lifted does not exceed the winch's capacity. It is also important to follow proper safety procedures and use appropriate equipment, such as cables and hooks, to ensure that the load is secure.

Material

Aluminum, stainless and carbon steel.

Advantages and Features

1. Excellent performance, high security;

2. Working load from 1T to 100T.

3. Easy for maintenance, lubrication and inspection.

4. High strength construction, high efficiency gearbox.

5. Can be designed and manufacture to suit customers applications and special operating requirements.

6. With or without warping head.

7. With or without anchor chain gypsy.

8. Local control or remote control.

9. Manual or hydraulic clutch and brake.

10. General motor or explosion-proof motor.

11. Auto tension control, rope length or speed measurement.

12. Certificate: CCS, BV, LR, RINA...

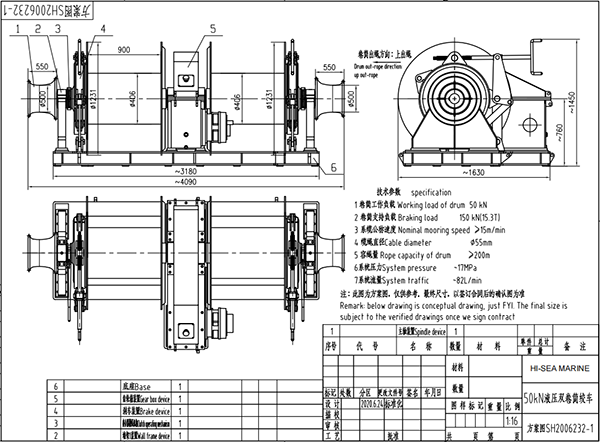

Drawing of 50kN Hydraulic Winch

Techincal Parameter

Specifications
Working load	50KN
Support load	150KN
Speed	≥15m/min
Cable diameter	55mm
Capacity	≥200m
System pressure	~15MPa
System traffic	~82L/min
