Automatic Self-Righting Inflatable Liferaft

Automatic Self-Righting Inflatable Liferaft

The automatic self-righting inflatable liferaft can ensure that no matter how the liferaft gets into the water, it will always right itself and be ready for boarding. This self-righting inflatable liferaft inflates with liquefied CO2 gas (partially mixed with N2 gas). It can turn upright in the water without assistance if the raft inflates in an inverted position. It is equipped with an automatic drain valve on the floor, which aims to make the raft fully inflates in 10 to 25 seconds after dropping at ordinary temperature.

1.Application of the product：

International Voyage Ships

2.Approval standard：

1.MSC.81（70）Revised Recommendation on Testing of Life-saving Appliances

2.MSC.48（66）International Life-saving Appliance Code

3.MSC.218（82）Amendment to the International Life-saving Appliance Code(LSA Code)

4.MSC.226（82）Amendment to the Revised Recommendation on Testing of Life-saving Appliances

5.1996 Amendment to the International Convention for the Safety of Life at Sea, 1974

6.MSC.293（87） and MSC.295（87） related requirement

7. Drawing approved by CCS

3.Approval:

CCS、DNV ▪ GL/EC

4.Specification:

Length（mm）	Width（mm）	Height（mm）	Weight（SOLAS A PACK）（kg）	Wight（SOLAS B PACK）（kg）	Carrying Capacity	Max Storage Height（m）
2620	1790	1355	90	72	6	36
3000	2030	1520	109	90	8
3290	2240	1680	118	92	10
3600	2450	1800	134	112	12
4000	2670	1900	156	118	15
4100	2720	2050	169	132	16
4550	3050	2100	200	150	20
5050	3350	2250	230	163	25
5500	3620	2410	269	200	30
6050	3750	2540	311	224	35
6330	3660	2300	308	216	37
7330	4180	2885	392	275	50
8250	4760	3200	500	352	65
10760	5180	3260	820	615	100
12000	5800	3480	900	620	125

5.Photo：

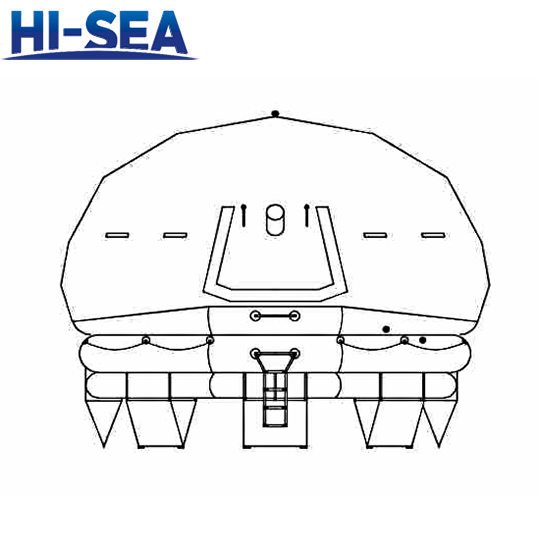

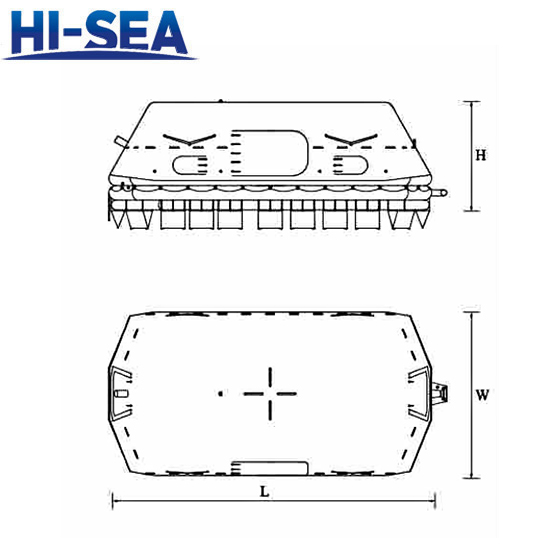

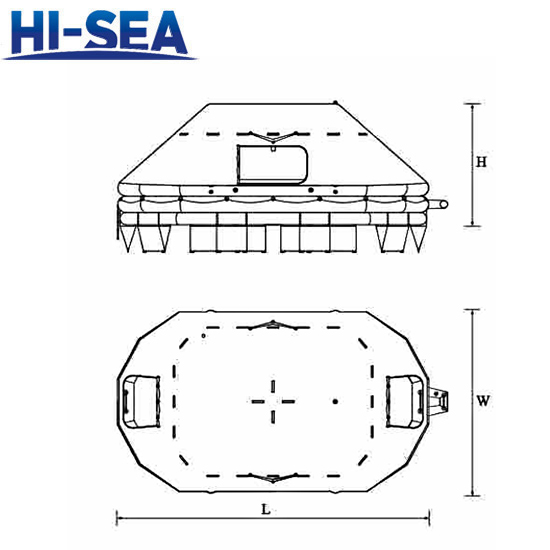

Drawing For Automatic Self-Righting Inflatable Liferaft
