Barge Winch

Barge  Winch

Application

A barge winch is a type of machinery used for loading and unloading cargo from barges. It is a device that utilizes a spool and cable system to lift and lower heavy items onto and off of barges. Barge winches are typically powered by electric or hydraulic motors, and they can come in a variety of sizes and configurations depending on the weight and size of the cargo they are designed to handle. Barge winches are commonly used in ports, harbors, and other marine environments where barges are used for transportation of goods. They are particularly useful for handling bulk cargo such as grain, coal, and other commodities that are too heavy or too cumbersome to be loaded or unloaded by hand. The winch is usually mounted on the dock, and the cable is run out to the barge, where it is attached to the cargo. The winch operator then uses controls to lift the cargo off the barge and move it onto the dock.

Material

Aluminum, stainless steel and carbon steel.

Advantages and Features

1. Electric drive, hydraulic drive or diesel engine;

2. Compact compact, high strength;

3. Easy for installation, inspection and maintenance;

4. Corrosion resistance, long lifespan;

5. Excellent performance, high quality;

6. Reliable service, high security;

7. With or without warping head;

8. Manual or hydraulic brake and clutch;

9. Can be customized according to your requirements;

10. Certificate: IRS, BV, LR...

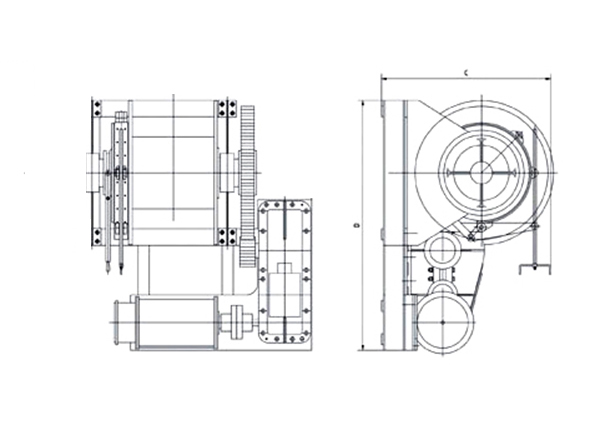

Drawing of Barge  Winch

Main Parameter

Rated Pull		Rated Speed	Drum Capacity	Motor Power
T	kN	m/min	φmm*m	kW
0.5	5	≥12	φ8*100	3/1.2
1	10	≥12	φ10*150	4.3/1.7
2	20	≥12	φ14*150	8.5/3.5
3	30	≥15	φ16*150	11/11/7.5
4	40	≥15	φ18*150	16/16/11
5	50	≥15	φ20*200	22/22/16
8	80	≥15	φ26*200	30/30/22
10	100	≥15	φ28*200	45/45/30
12.5	125	≥15	φ30*200	45/45/30
16	160	≥15	φ32*250	60/60/45
20	200	≥9.5	φ40*250	60/60/45
25	250	≥9.5	φ44*250	75/75/36
Above specifications only for reference, we can supply various winches according to your requirements.
