Boat Turnable Aluminium Accommodation Ladder

Boat Turnable Treads Aluminium Accommodation Ladder

Description:

This is a kind of marine ladder used in port, at sea, or in anchorage on kinds of vessels for getting pilots/crews embark or disembark when the ship moors alongside a dock. The adjustable range of its rigged position can be 55 degree. The steps are unfixed and is turnable, The handrails outside ladder stringers are foldable. Its design is consistence with ISO standard, IMO standard, and various Classification Society's requirements.

Features:

1. Material: aluminum

2. Step: fixed and anodized

3. Handrail: rope / aluminum

4. Length: customized

5. Usage Angle: 0-55 degree

6. Standard: ISO 5488-1979 & CB/T14360-93

7. Optional IACS Certificates: CCS, NK, BV, RINA, ABS, LR, DNV·GL, etc.

Reference Specifications:

Number of steps	Length	Height	Length	L	B	C	D≥	weight
	L1 m	H m	L2 m					kg
12	3.6	3.6	3.8	4995	555	260	350	705
14	4.2	4.1	4.4	5995	555	260	350	751
16	4.8	4.6	5	6195	555	260	350	797
18	5.4	5.2	5.6	6795	555	260	350	842
20	6	5.6	6.2	7395	555	260	350	890
22	6.6	6.2	6.8	7995	605	260	350	938
24	7.2	6.6	7.4	8595	605	260	350	987
(26)	7.8	7.2	8	9195	605	310	400	1144
28	8.4	7.6	8.6	9795	605	310	400	1203
(30)	9	8.2	9.2	10395	605	310	400	1262
32	9.6	8.6	9.8	10995	605	310	400	1383
(34)	10.2	9.2	10.4	11595	605	310	460	1445
36	10.8	9.6	11	12195	655	360	460	1589
(38)	11.4	10.1	11.6	12795	655	360	460	1653
40	12	10.5	12.2	13395	655	360	460	1807
44	13.2	11.5	13.4	14595	655	410	510	2031
48	14.4	12.5	14.6	15795	655	410	510	2260

Optional IACS Certificates: CCS, NK, BV, RINA, ABS, LR, DNV·GL

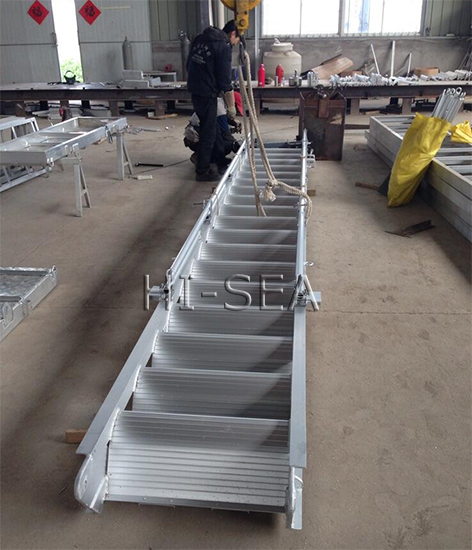

Products Showing:
