CBL-15 Marine Fan
CBL-15 Marine Fan
1. Introduction:
CBL series marine or navy explosion-proof axial fans are designed and manufactured according to GB11799-2008《electrical apparatus for explosive atmospheres》, GB3836.2-2000《electrical apparatus for explosive atmospheres, and explosive-proof electrical equipment "d" 》,《rules for the steel sea ship in class and building》.
This series fans have been examined and proved up to standard by the Explosion-proof Inspection Authority of the PRC and have got the certificate of inspection. They have also been examined by the register of shipping of RC and have got the certificate.
2. Features:
Explosion-proof, safety and reliable in operation, small size, light weight, and low noise, well anti-corrosive, strongly capable of resisting swing, vibration and hocking.
|
Type |
Flow rate m³/h |
Total pressure Pa |
Static pressure Pa |
Speed r/min |
Motor |
||||
|
Freq Hz |
Power Kw |
Type |
|||||||
|
Type I |
Type II |
Type I |
Type II |
||||||
|
CBL-15 |
500 |
550 |
490 |
2920 |
50 |
0.75
|
1.5 |
YB801-2H
|
YB90S-2H Y90S-2H |
|
800 |
540 |
390 |
|||||||
|
600 |
780 |
590 |
3500 |
60 |
|||||
|
960 |
645 |
470 |
|||||||
|
Type |
Type of the motor |
A |
A1 |
A2 |
A3 |
B |
B1 |
B2 |
B3 |
D1 |
D2 |
D3 |
n₁*d₁ |
n₂*d₂ |
H |
h |
h₁ |
h₂ |
|
|
Type I |
Type II |
||||||||||||||||||
|
CBL-15 |
YB801-2H |
YB90S-2H Y90S-2H |
105 |
159 |
135
|
60 |
135
|
188 |
165 |
80 |
Ø209 |
Ø185 |
Ø156 |
8*Ø10 |
8*Ø10 |
314 |
80 |
124.5 |
95.5 |
|
M |
M1 |
L |
L1 |
L2 |
L3 |
L4 |
K |
H1 |
H2 |
H3 |
Ø1 |
Ø2 |
Ø3 |
I1 |
I2 |
I3 |
I4 |
I5 |
I6 |
Weight ≈㎏ |
||
|
Type I |
Type II |
Type I |
Type II |
|||||||||||||||||||
|
270 |
125.5 |
432
|
87 |
105.5 |
100 |
125 |
Ø10 |
Ø10 |
439.5 |
250 |
90 |
Ø12 |
Ø140 |
Ø165 |
250 |
185.5 |
387 |
542 |
140 |
100 |
40 |
61 |
4. Outline Drawing:

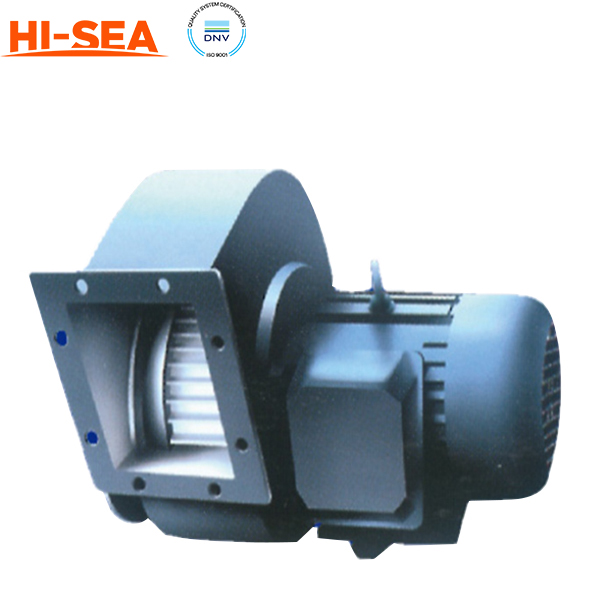

5. Product Showing:
