1. Introduction:
CBL series marine or navy explosion-proof axial fans are designed and manufactured according to GB11799-2008《electrical apparatus for explosive atmospheres》, GB3836.2-2000《electrical apparatus for explosive atmospheres, and explosive-proof electrical equipment "d" 》,《rules for the steel sea ship in class and building》.
This series fans have been examined and proved up to standard by the Explosion-proof Inspection Authority of the PRC and have got the certificate of inspection. They have also been examined by the register of shipping of RC and have got the certificate.

2. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-27	2500	510	390	1460	50	1.5	1.5	YB90L-4H	YB90L-4H Y90L-4H
	3000	510	340
	3000	735	560	1750	60
	3600	735	490

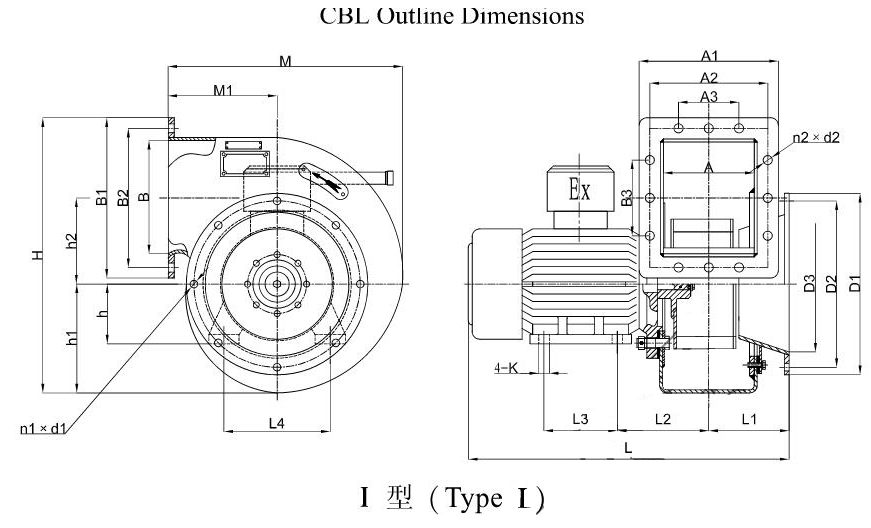

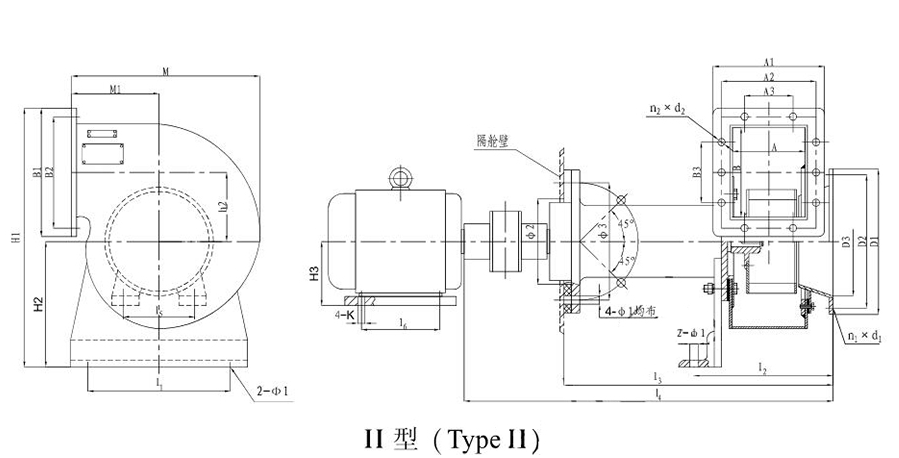

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-27

YB90L-4H

YB90L-4H Y90L-4H

200

275

235

120

250

325

285

190

Ø353

Ø315

Ø280

8*Ø12

10*Ø12

558

90

221.5

175

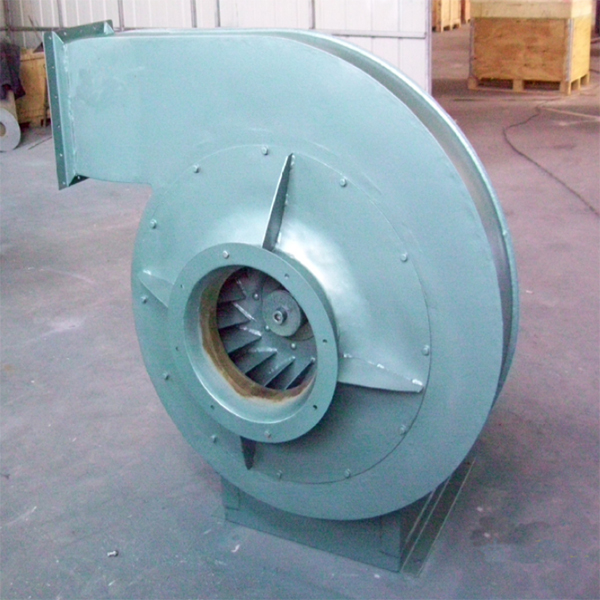

4. Product Showing:
