CBL-34 Marine Fan

CBL-34 Marine Fan

1. Model Explanation:

C   B   L    34   I

C------Marine or navy

B------explosion-proof

L-------centrifugal fan

34------impeller diameter is 34cm(rounded)

I--------direct coupling

2. Protection Class of Fan:

The main function is to prevent man from damage of electricity or rolling and or to prevent solid object, water, oil from entering. It conforms to GB4942 and IEC34-5.

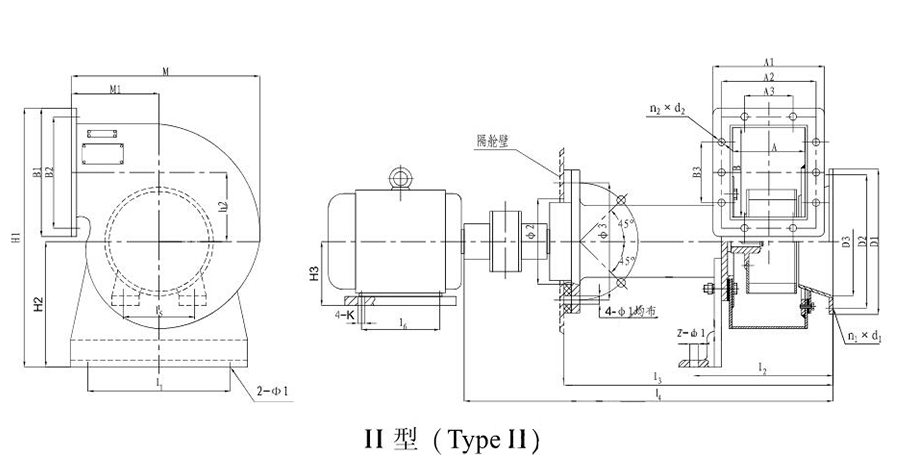

3. Main Property Parameters and Dimension:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-34	5000	860	685	1460	50	3	4	YB100L₂-4H	YB112M-4H Y112M-4H
	6000	840	590
	6000	1235	990	1750	60	4		YB112M-4H
	7200	1215	840

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-34

YB100L₂-4H

YB112M-4H Y112M-4H

250

326

295

180

325

399

365

220

Ø424

Ø390

Ø350

8*Ø12

12*Ø12

695

100

278

217.5

YB112M-4H

112

5. Product Showing:
