1. Introduction:
CBL series marine or navy explosion-proof axial fans are designed and manufactured according to GB11799-2008《electrical apparatus for explosive atmospheres》, GB3836.2-2000《electrical apparatus for explosive atmospheres, and explosive-proof electrical equipment "d" 》,《rules for the steel sea ship in class and building》.
This series fans have been examined and proved up to standard by the Explosion-proof Inspection Authority of the PRC and have got the certificate of inspection. They have also been examined by the register of shipping of RC and have got the certificate.
2. Characteristics:
Explosion-proof, safety and reliable in operation, small size, light weight, and low noise, well anti-corrosive, strongly capable of resisting swing, vibration and hocking.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-50	12000	775	540	970	50	5.5	5.5	YB132M₂-6H	YB132M₂-6H Y132M₂-6H
	14000	1110	775	1160	60	7.5	7.5	YB160M-6H	YB160M-6H Y160M-6H
	15000	1830	1470	1460	50	18.5	18.5	YB180M-4H	YB180M-4H Y180M-4H
	18000	1795	1275
	18000	2635	2120	1750	60	22	22	YB180L-4H	YB180L-4H Y180L-4H
	21000	2680	1830

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-50

YB132M₂-6H

YB132M₂-6H Y132M₂-6H

360

448

408

290

470

556

515

390

Ø606

Ø570

Ø520

12*Ø12

12*Ø12

992

132

402

312

YB160M-6H

YB160M-6H Y160M-6H

160

YB180M-4H

YB180M-4H Y180M-4H

180

YB180L-4H

YB180L-4H Y180L-4H

180

M	M1	L	L1	L2	L3	L4	K		H1	H2	H3	Ø1	Ø2	Ø3	I1	I2	I3	I4	I5	I6	Weight ≈㎏
							Type I	Type II													Type I	Type II
870	394	890	235	274	178	216	Ø12	Ø12	1020	430	132	Ø15	Ø240	Ø265	400	467	734	952	216	178	190	223
		965		293	210	254	Ø15	Ø15	1100	510	160	Ø19	Ø260	Ø300	450	467	768	1052	254	210	230	275
		1005		293	241	279	Ø15	Ø15		510	160	Ø19	Ø260	Ø300	450	467	768	1052	254	254	255	309
		1060		306	279	279	Ø15	Ø15		510	180	Ø19	Ø260	Ø300	450	467	768	1052	279	279	359	404

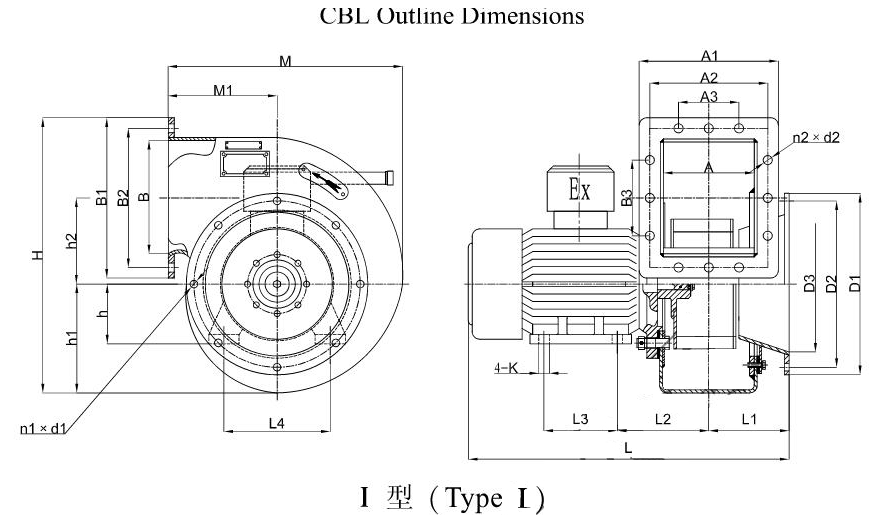

4. Outline Drawing:

5. Product Showing:
