CBL-56 Marine Fan

CBL-56 Marine Fan

1. Installation Type for Centrifugal Fan:

The fan is horizontal type, motor is direct coupling. If necessary, it can also be constructed into a vertical type.

The fan can be made of clockwise(right) or counter clockwise(left) rotation.

Right rotation-----viewed from the motor side, the impeller rotates clockwise and indicated as “R”.

Left rotation-------viewed from the motor side, the impeller rotates counter clockwise and indicated as “L”.

2. Explosion-proof Centrifugal Fan:

The explosion-proof centrifugal fan can be made into two structure types, type I and type two:

Type I is in horizontal pattern with direct coupling for the motor, however, it also be constructed into vertical pattern.

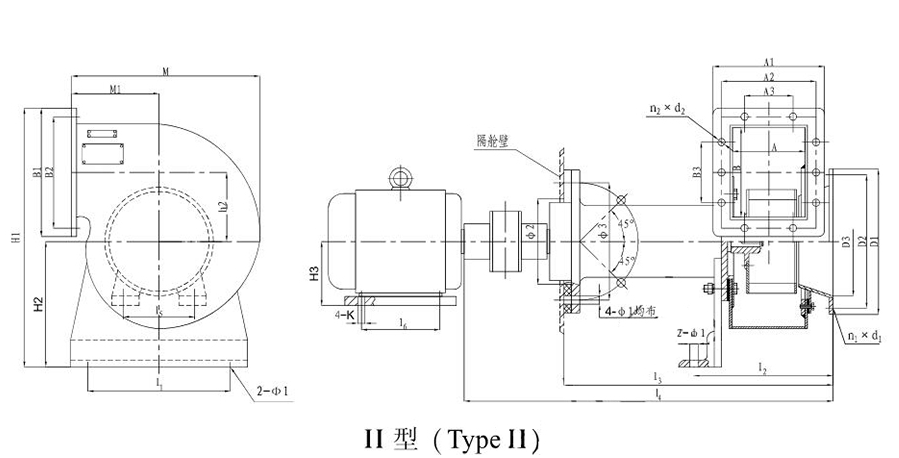

Type II is in separate cabin pattern, made up of fan, driving device, coupling and motor.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-56	15000	1060	830	970	50	11	11	YB160L-6H	YB160L-6H Y160L-6H
	18000	1010	685
	18000	1520	1195	1160	60	15	15	YB180L-6H	YB180L-6H Y180L-6H
	21000	1440	980

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-56

YB160L-6H

YB160L-6H Y160L-6H

400

488

448

330

540

626

586

460

Ø666

Ø630

Ø586

12*Ø12

12*Ø12

1106

160

453

340

YB180L-6H

YB180L-6H Y180L-6H

180

5. Product Showing:
