CBT 3468-1992 Marine Mooring Wire Rope Reel Type B

CBT 3468-1992 Marine Mooring Wire Rope Reel Type B

Description:

CBT 3468-1992 marine mooring wire rope reel is used to store steel wire for all ship types, but not for towing or stranded ropes. This standard marine ship rope reel is easy to operate with a crank handle. More information is shown in the drawing and parameters below. And we can supply customized type according to your drawing.

For more information please contact us, we’ll reply you soon.

Features of CBT 3468-1992 Marine Mooring Wire Rope Reel Type B:

1. Application: Store marine mooring wire ropes;

2. Model Type: B39, B48;

3. Applicable Steel Wire Max. Diameter: 39mm~47.5 mm;

4. Max. Length of Steel Wire: 210m~230 m;

5. Bolts Quantity: 10,12;

6. Material: Cast steel and carbon steel.

Drawing of CBT 3468-1992 Marine Mooring Wire Rope Reel Type B:

Parameters of CBT 3468-1992 Marine Mooring Wire Rope Reel Type B:

Form 1-1:

Model	Max. Dia. of Wire Rope (mm)	Max. Wire Rope Length (m)	Unit:mm
			D	D1	D2	L	L1	L2	L3	B	B1	H	H1	H2	H3
B39	39.0	210	510	936	1008	750	972	1032	1656	910	1085	584	1148	1303	1488
B48	47.5	230	620	1020	1032	1100	1326	1386	2010	1000	1220	584	1160	1315	1500

Model	Gear Modulus	Large Gear Tooth Number (pcs)	Small Gear Tooth Number (pcs)	Foot Bolt			Weight
				Bolt Dia.	Qty	B2	(kg)
B39	6	166	22	M16	10	180	337
B48	8	127	17	M16	12	200	394

Materials of Main Parts:

Inspection Rules:

1. Check if the rotation of the cable reel is stable and light.

2. Check that the brakes are reliable and that the gears are meshed evenly.

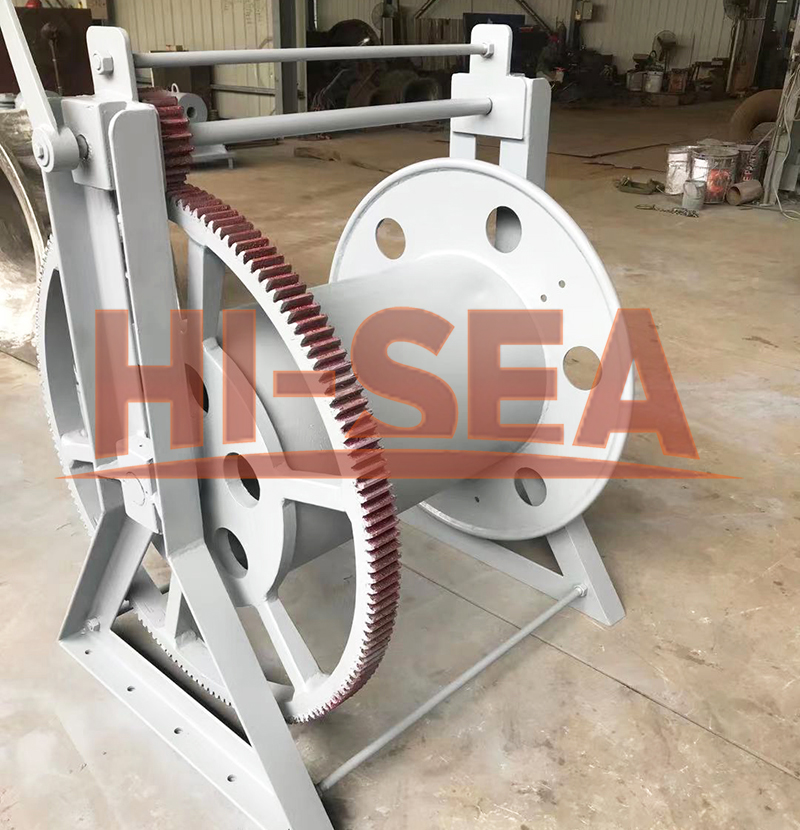

Display of CBT 3468-1992 Marine Mooring Wire Rope Reel Type B:
