Introduction:

The CBZ-110B Marine Fan is a type of axial flow fan that is commonly used in marine environments. It is designed to provide ventilation and cooling for ship cabins, engine rooms, and other marine applications.

The fan is typically made of high-quality aluminum alloy and features a robust construction that can withstand harsh marine environments. It is also designed to be lightweight, which makes it easier to install and transport.

The CBZ-110B Marine Fan has a maximum airflow of 2500 cubic meters per hour and can be operated using a 220V AC power supply. It is also equipped with a variable speed controller, which allows the user to adjust the fan's speed to suit their specific needs.

Overall, the CBZ-110B Marine Fan is a reliable and efficient ventilation solution for marine applications. It is designed to withstand the challenging conditions of marine environments while providing optimal ventilation and cooling.

Feature:

1. Corrosion-resistant materials: The fan is made from high-quality marine-grade aluminum alloy, which makes it highly resistant to corrosion from saltwater and other environmental factors.

2. High efficiency: The CBZ-110B Marine Fan has a highly efficient blade design that allows it to move large volumes of air while consuming relatively low amounts of energy.

3. Low noise level: The fan operates at a low noise level, making it ideal for use in cabins and other areas where noise levels need to be kept to a minimum.

4. Easy installation: The fan is designed for easy installation, with a compact size that makes it easy to fit into tight spaces.

5. Long lifespan: The CBZ-110B Marine Fan is built to last, with a durable design that can withstand harsh marine environments and operate reliably for many years.

6. Wide range of applications: The fan can be used in a variety of marine applications, including ventilation systems, air conditioning systems, and engine rooms.

Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			Dimensions										Weight ≈㎏
					Freq Hz	Power Kw	Type	D	D₁	D₂	D₃	H₁	H₂	H₃	L	T	n*d	Ⅰ	Ⅱ
CBZ-110B	42000	310	220	970	50	7.5	YB160M-6H	Ø1100	Ø1170	Ø1210	Ø2000	500	845	1170	1000	12	20*19	351	326
	48000	260	140
	50000	450	320	1160	60	11	YB160L-6H							1210				475	350
	57000	370	200

Outline Drawing:

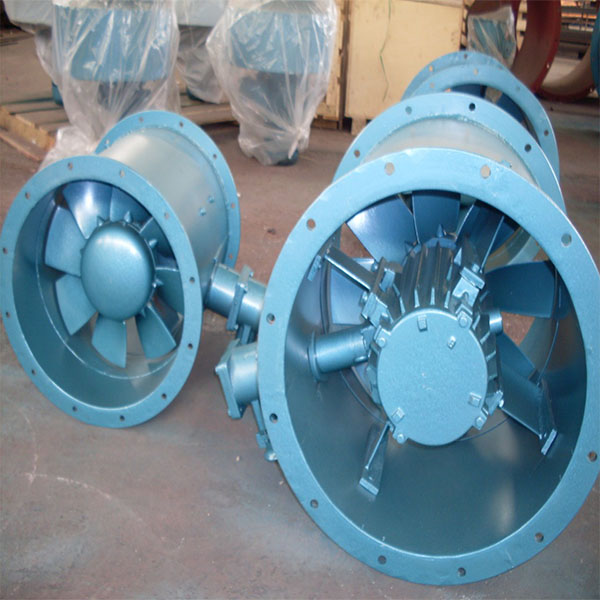

Product Showing:
