CLG Marine Vertical Multistage Single-suction Domestic Water Pump

CLG Marine Vertical Multistage Single-suction Domestic Water Pump

Overview

CLG series marine vertical multi-stage single-suction domestic water pump, for pumping clear water and physical and chemical properties similar to liquid water.

It has the following characteristics:

Advanced hydraulic model, high efficiency and wide performance range.

Pump smooth operation, low noise.

Shaft seal mechanical seal, reliable sealing, simple structure, convenient and quick maintenance.

The shaft is fully sealed structure, to ensure no contact with the medium, no corrosion, long service life.

Model Explanation  25CLG(R)3-10×9

25---Inlet diameter 25mm

CLG—Marine vertical pump

R—Indicated that hot water

3---Capacity 3m³/h

10— Single-stage Head 10 m

9— Series 9

Structural Specifications

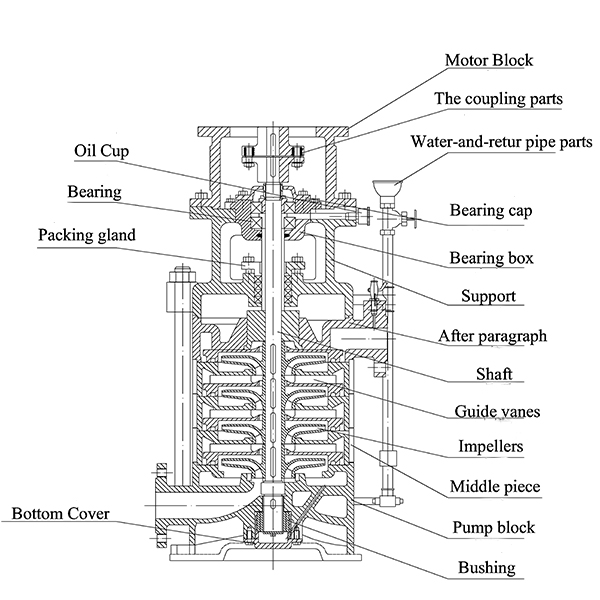

CLG Structural Specifications


CLGR Structural Specifications

Performance Parameter

CLG(R)

50HZ/2900RPM

60HZ/3500RPM

50HZ/60HZ


Type


Capacity

(m3/h)


Head

(m)


Motor power

(kW)


Weight

(kg)


Capacity

(m3/h)


Head

(m)


Motor power

(kW)


Efficiency

(%)


(NPSH)r

(m)


Impeller dia.

(mm)


Inlet/out dia.

(mm)

25CLG(R)

3-10×2

2.4

20.8

0.75

70

2.88

30

1.1

38

1.8

98

25

3

20

3.6

28.8

42

2

4.7

15.4

5.64

22.2

44

2.2

25CLG(R)

3-10×3

2.4

31.2

1.1

74

2.88

44.9

1.5

38

1.8

98

25

3

30

3.6

43.2

42

2

4.7

23.1

5.64

33.3

44

2.2

25CLG(R)

3-10×4

2.4

41.6

1.1

84.5

2.88

59.9

1.5

38

1.8

98

25

3

40

3.6

57.6

42

2

4.7

30.8

5.64

44.4

44

2.2

25CLG(R)

3-10×5

2.4

52

1.5

88.5

2.88

74.9

2.2

38

1.8

98

25

3

50

3.6

72

42

2

4.7

38.5

5.64

55.4

44

2.2

25CLG(R)

3-10×6

2.4

62.4

2.2

96.5

2.88

89.9

3

38

1.8

98

25

3

60

3.6

86.4

42

2

4.7

46.2

5.64

66.5

44

2.2

25CLG(R)

3-10×7

2.4

72.8

2.2

100.5

2.88

104.8

3

38

1.8

98

25

3

70

3.6

100.8

42

2

4.7

53.9

5.64

77.6

44

2.2

25CLG(R)

3-10×8

2.4

83.2

2.2

104.5

2.88

119.8

3

38

1.8

98

25

3

80

3.6

115.2

42

2

4.7

61.6

5.64

88.7

44

2.2

25CLG(R)

3-10×9

2.4

93.6

2.2

108.5

2.88

134.8

3

38

1.8

98

25

3

90

3.6

129.6

42

2

4.7

69.3

5.64

99.8

44

2.2

25CLG(R)

3-10×10

2.4

104

3

124

2.88

149.8

4

38

1.8

98

25

3

100

3.6

144

42

2

4.7

77

5.64

110.9

44

2.2

The Picture of CLG Marine Vertical Multistage Single-suction  Domestic Water  Pump
