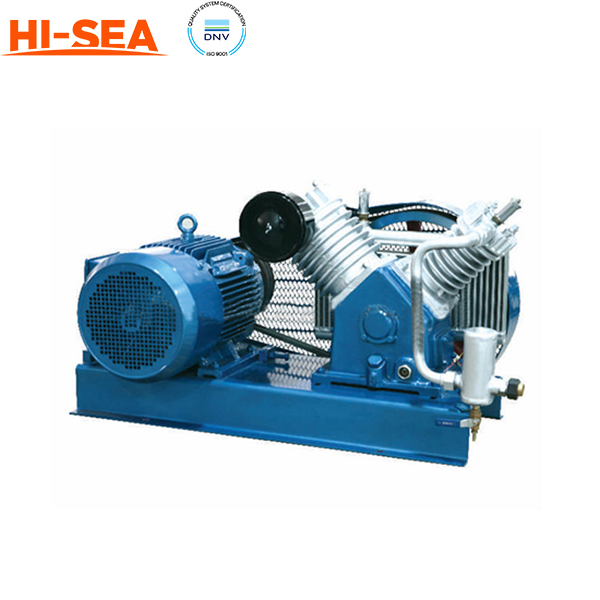

CWF-10-1 Marine Air Compressor

CWF-10-1 Marine Air Compressor

Application

This marine air compressor is applicable to supplying air source for the ship whistle, oil and gas stove and auxiliary equipment, the displacement capacity is 10-15 m³/h, the rated pressure is 1.0 Mpa. The characteristics of this marine air compressor is low energy consumption, low noise and long service life. It is easy to maintenance. The CWF-10-1 compressor is constructed from high-quality materials, such as cast iron and stainless steel, to withstand the harsh marine environment and resist corrosion. It is also designed for easy maintenance, with simple access to all key components and a user-friendly control panel. Overall, the CWF-10-1 marine air compressor is a reliable and efficient solution for providing compressed air on board marine vessels. Its high performance and durability make it a popular choice for a wide range of marine applications, particularly where high-pressure air is required.

Features

Main Technical Parameter

Model	Displacement Capacity	Specified Pressure	Rotating Speed	Weight	Dimension	Motor Power
	m3/h	Mpa	r/min	kg	(L×W×H)	kW	HP
CWF-10/1	10	3.0	750	93	900×400×650	1.5	2
CWF-15/1	20		1000	100		2.2	3
