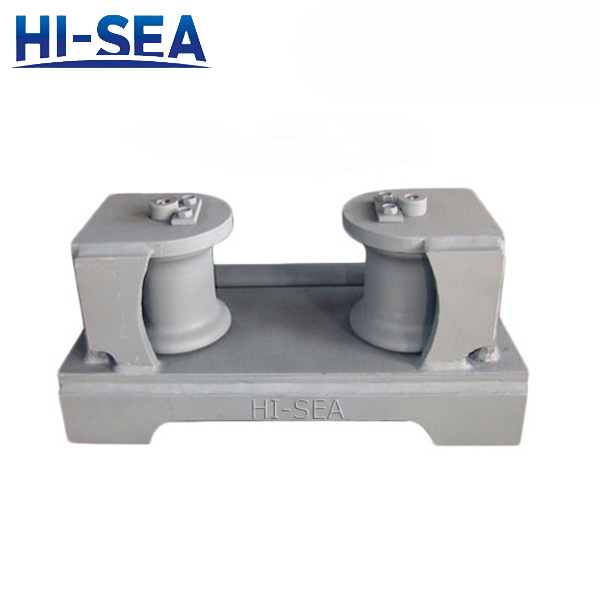

Cast Double Roller Chock

Cast Double Roller Chock

Description:

In order to change the direction of the cable and reduce friction between the hull and cable. Fairleader roller and belt roller divided into two categories, no roller chocks and roller chocks. Besides, according to its opening types can be divided into vertical and oblique; roller chock with one to three drum, sometimes with more than three. Chock made of cast iron or cast steel, usually installed on the deck of a ship deck and bulwark top.

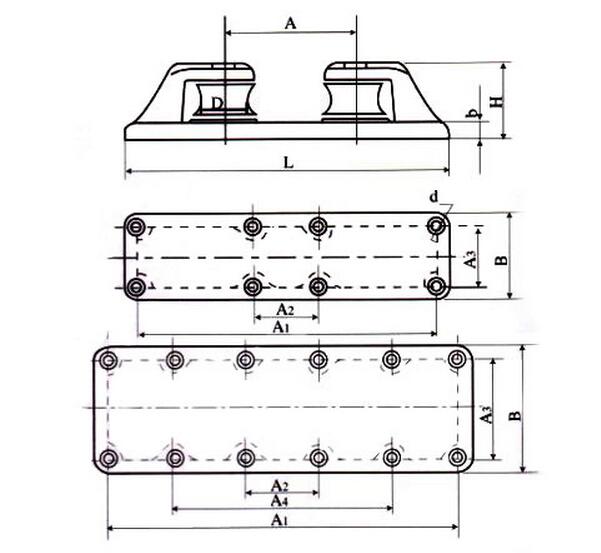

Drawing of CB39-66 Cast Double Roller Chock:

Max.

Diameter of

Wire Ropes

(mm)

Max.

Diameter of

Hemp Ropes

(mm)

Roller Dia.

(mm)

L

(mm)

B

(mm)

H(mm)

h(mm)

r

(mm)

A

(mm)

A1

(mm)

A2

(mm)

A3

(mm)

A4

(mm)

d

(mm)

Screw

Numbers

Weight(kg)

Cast

Iron

Cast

Steel

Cast

Iron

Cast

Steel

Cast Iron

Cast Steel

15.5

125

75

640

175

168

158

40

30

30

240

580

110

115

-

17

8

50

44

19.5

175

100

800

210

190

180

45

35

35

300

730

120

140

-

21

8

86

82

22.5

200

125

940

245

217

207

50

40

40

360

860

140

165

-

25

8

141

133

26.0

225

150

1100

280

250

235

55

40

45

420

1010

170

190

-

30

8

222

215

30.5

250

170

1200

310

273

260

58

45

45

460

1110

230

220

-

33

8

300

274

33.5

275

185

1300

340

285

270

60

45

50

500

1200

240

240

-

33

8

374

329

37.5

300

200

1400

360

295

280

65

50

50

530

1300

260

260

800

33

12

444

417

43.5

325

230

1580

400

320

305

65

50

50

590

1480

280

300

900

33

12

589

547

48.5

350

250

1700

42

340

340

70

55

55

640

1590

300

310

980

39

12

721

687

Features:

Model Type: Cast Double Roller Chock

Material: Casting Steel/Casting Iron

Standard: CB 39-66

Standards: Certificates: CCS, ABS, BV, LR, NK, RINA, etc.

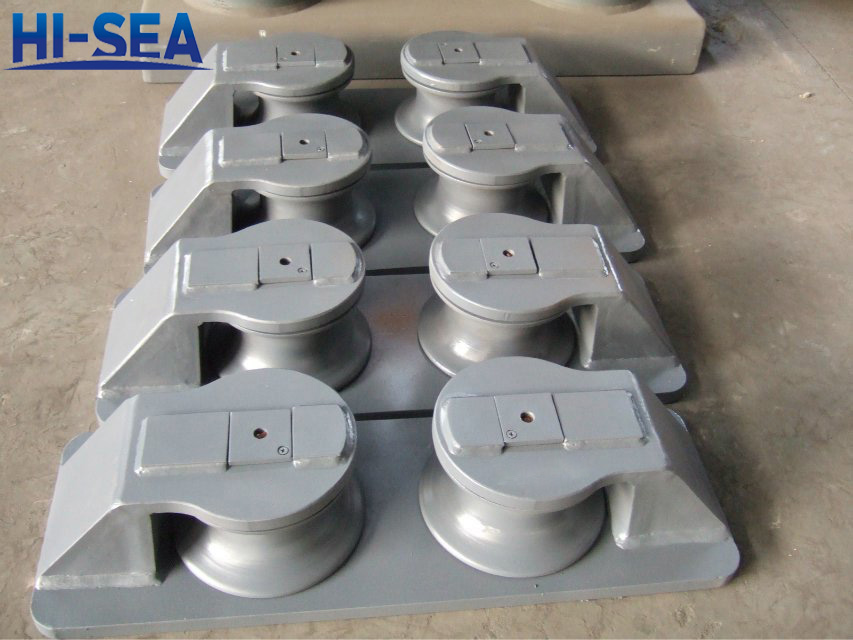

Guide Cable Clamp Fairlead in Factory:

roller chock
