DN550 Dredge Suction Rubber Hose

DN550 Dredge Suction Rubber Hose

Application
DN550 Dredge suction rubber hoses are designed to withstand the harsh conditions of dredging operations, including abrasion, corrosion, and high pressure. They are available in a variety of sizes and lengths to meet the specific requirements of different dredging projects. Proper maintenance and inspection of the dredge suction rubber hose is important to ensure safe and efficient operation. Regular inspection can help detect signs of wear and damage, and timely replacement of worn or damaged hoses can help prevent costly downtime and repairs.

Features
1.Suitable working temperature:-20℃ to +50℃.
2.Durable and flexible to use.
3.Easy installation, Excellent abrasion-resistant and bending -resistant.
4.The product can be customized according to clients' requirements.

Structure and Material
1.Inner rubber:black abrasion resistant natural rubber.
2.Reinforcement layer:multiple plies of polyester fabric with a spring steel helix wire.
3.Cover rubber:neoprene or composed of natural rubber and synthetic rubber.

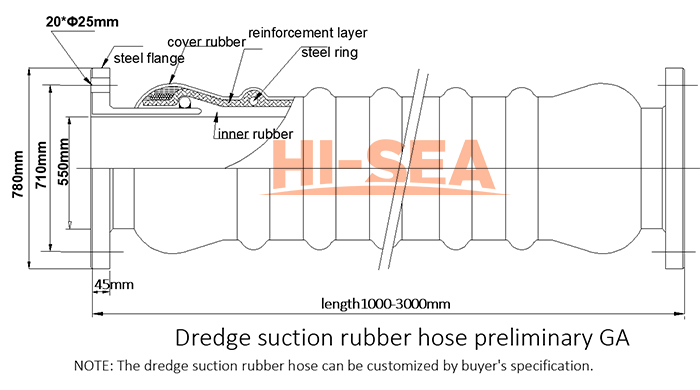

Drawing of DN550 Dredge Suction Rubber Hose

Technical Specifications

DN	Flange OD	Flange Thickness	Bolt Hole			Length	Wall Thickness
			P.C.D	No.	Hole Dia.
mm	mm	mm	mm		mm	mm	mm
550±5	780±3	45±2	710±1	20	25±1	1000-3000	35-37
