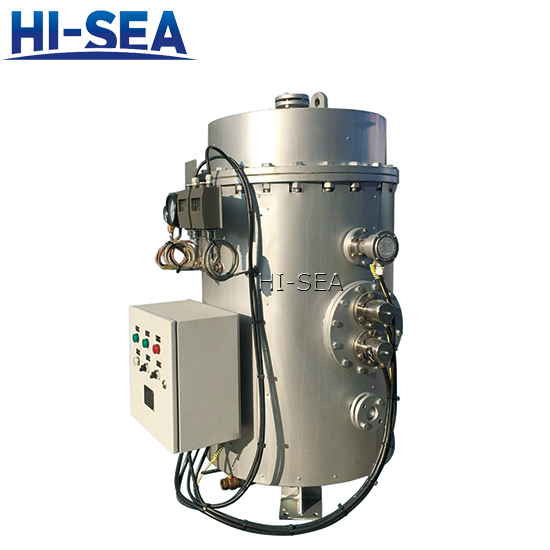

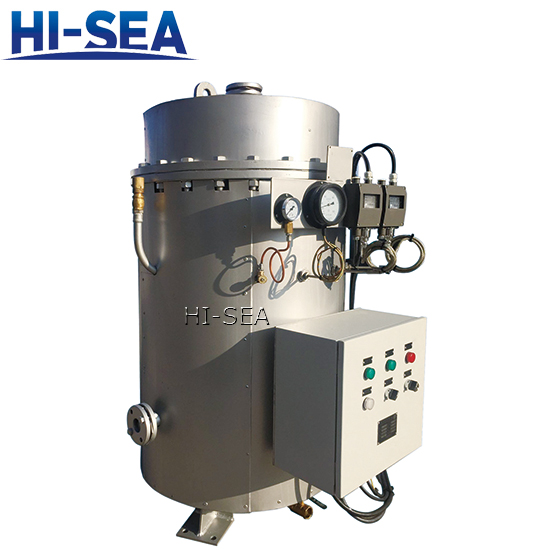

DRG-0.3 Calorifier

DRG-0.3 Calorifier

1. DRG-0.3 Calorifier Application
This DRG-0.3 Calorifier is suitable for heating fresh water on the ship or platform, heated fresh water for crew use.

2. DRG-0.3 Calorifier Technical parameters
Type:   DRG－0.3
Capacity:   0.3m3
Work pressure:   0.4MPa
Design pressure:   0.44MPa
Inlet/outlet water temperature:   0℃/65℃
Electric heater power:   24KW
Electric heating water capacity:   360 kg/h
Electric heater power supply:   3PH/AC4400V/60Hz
Insulation class of the heater:   F class
Quantity:   1 set/ship
Material:   Carbon steel

3. DRG-0.3 Calorifier Main Components

No.	Name	Qty	Remark	No.	Name	Qty	Remark
1	Body	1		6	Safety valve	1
2	Control box	1		7	Pressure gauge	1
3	Temperature controller	2		8	Drain valve	1
4	Electric heater	1	kW	9	Float-type level controller	1
5	Thermometer	1		10

4. DRG-0.3 Calorifier General Drawing
