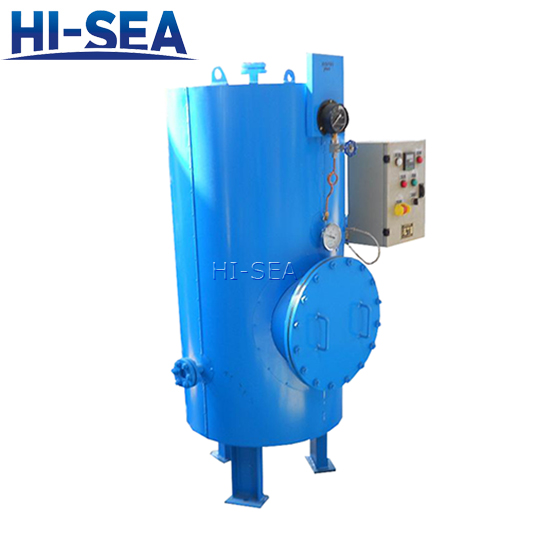

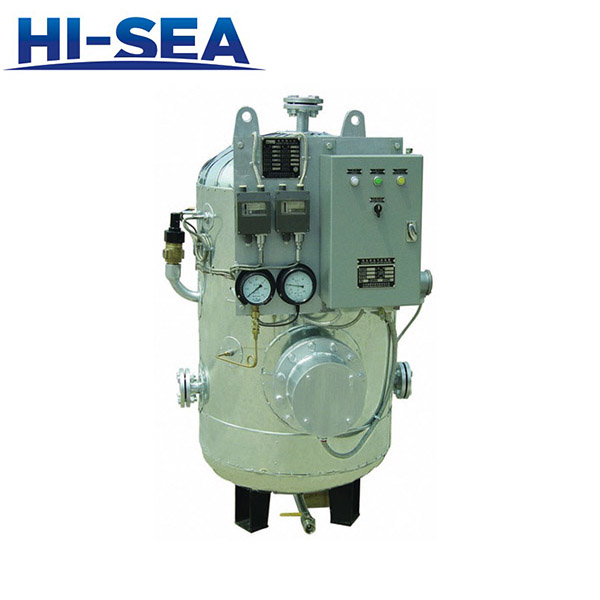

DRG-1.0 Hot Water Tank

DRG-1.0 Hot Water Tank

1. DRG-1.0 Hot Water Tank Operational principle
(1) The hot water tank water inlet meets the pressure water tank, (approximately 15℃) fills the pressure water tank's in fresh water heats
up the cabinet, hot water tank heater fresh water heating to 65℃, for the entire ship use.
(2) The water used system backwater pipe joint hot water tank water pump water inlet, the water pump regularly the water pump regeneration water tank which cools gradually the water used system, carries on the heating.
2. DRG-1.0 Hot Water Tank Technical Specifications
(1) Main parameters
Volume: 1.0m³ ;
Design pressure: 0.7MPa;
Working pressure: 0.5MPa;
Electric heating power: 2*12+2*18kw;
Power source: 3φ 480V 60Hz (optional).
(2) Main body structural testing: 1.05MPa;
Whole pressure testing: 0.875MPa without leakage.
(3) The superficial stain removal, the ontology of galvanized processing.
(4) With ANSI B 16.5 RF#150 flange.

Item No.	Model No.	Description	Qty.
1	DN20	ball valve	1
2	DN400	Manhole cover	1
3	δ8	Main body	1
4	WSS-401	Thermometer	1
5		Pressure gauge connection	1
6	YC-100T	Pressure gauge	1
7		Name plate	1
8	A21F-16P	Safety valve	1
9		Electrically controlled box	1
10		Temperature controller connection	1
11	UQK-01	Fluid position controller	1
12	RYF 480V/18Kw	Electric heater	2
13	RYF 480V/12Kw	Electric heater	2
14	B16040  GBT 591	Stop inverted valve	2
15	1.5CWX-2	Circulating pump	2

3. DRG-1.0 Hot Water Tank General Drawing

4. All kinds class certificate of DRG-1.0 Hot Water Tank can be supply.
