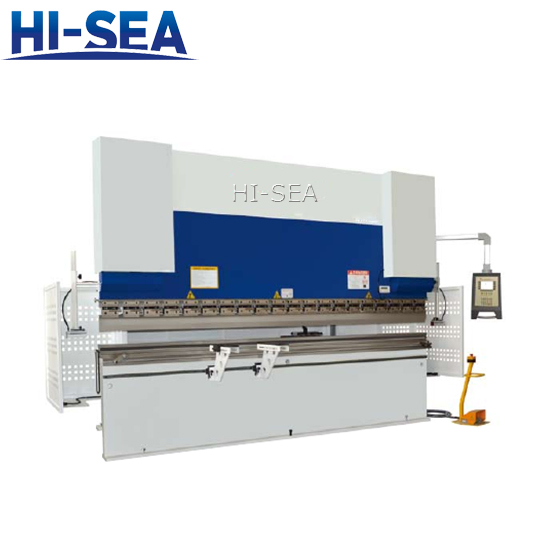

Electric Press Brake

Electric Press Brake

1. Electric Press Brake Description

(1) Accurate, user-friendly control system

Runs in single-bend mode or programmable mode. Comes standard with 2 axes of control: stroke and back gauge distance. Simple controller is so intuitive that you could train someone to use it in 5 minutes. Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production. Bending is accurate to +/- .01mm, ensuring that parts come out right the first time. Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend. You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal. Choose between 2 speeds: a rapid approach and retract and a slow bending speed. Faster speed option lets you reduce cycle times and bend more quickly. Chain drive back gauge system uses tried-and-true technology that you can easily maintain. The 23" back gauge can advance or retract according to programmed instructions.

(2) Rigid steel construction and included tooling

Fully-welded all-steel framework helps prevent deformation and minimize flex during the bending process. Weighs a robust 6,000 lbs. for massive structural strength that ensures accurate results. Includes support arms around 2 feet in length. Comes standard with tooling: a multi-Vee bottom die and gooseneck punches. Quick-release tool holders let you make changes easily. You only have to open a lever and it drops the top die out. No time-consuming cap screws. Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across. Safety light curtains prevent the machine from bending when someone is too close. Light curtains will swing open and get out of the way when you’re doing a tool change.

2. Specification of Electric Press Brake

The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!

Table Size (Length)  78.7"
Back Gauge Length  15.7"
Return Speed  3.5" / sec.
Maximum Pressure  45 ton
Throat Depth  7.87"
Stroke Distance  3.93"
Table Size (Width)  5.5"
Approach Speed  3.93" / sec.
Back Gauge Motor  1/2 hp
Bending Speed  .393" / sec.
Main Motor  4 hp
Distance Between Housings  64.5"
Distance From Table To Ram  11.81"
Power  220V / 3-phase
Shipping Weight  6000 lbs.
Shipping Dimensions  98" x 75" x 88"
