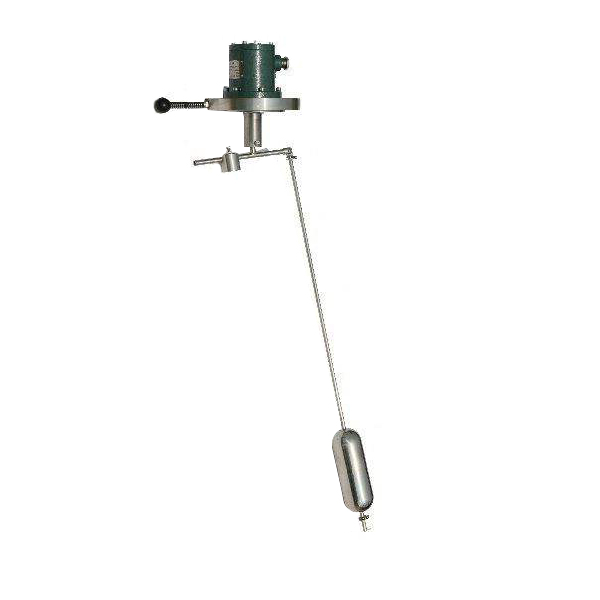

Explosion-Proof Type level controller

Explosion-Proof Type level controller

General:

An explosion-proof type level controller is a device designed to monitor and control the level of a liquid or bulk material in a hazardous environment where there is a risk of explosions. These controllers are typically used in industries such as oil and gas, chemical processing, pharmaceuticals, and mining, where flammable or volatile substances are present.

The primary function of an explosion-proof level controller is to provide accurate and reliable level measurements while ensuring the safety of the surrounding environment. They are built to withstand potentially explosive atmospheres and are constructed using materials and techniques that prevent the ignition of flammable gases, vapors, or dust.

Here are some key features and components commonly found in explosion-proof type level controllers:

1. Explosion-proof enclosure: The controller is housed in a rugged, tightly sealed enclosure made of materials that can contain any potential explosion within the device, preventing it from igniting the surrounding atmosphere.

2. Intrinsically safe design: The electrical components and wiring within the level controller are designed to limit the energy and heat generated, preventing them from reaching levels that could cause an explosion.

3. Level sensing technology: These controllers use various technologies to measure the level of the substance being monitored. Commonly used methods include floats, displacers, capacitance probes, ultrasonic sensors, and radar sensors.

4. Control and monitoring features: Explosion-proof level controllers are equipped with control outputs, such as relays or analog outputs, to maintain the desired level by activating pumps, valves, or alarms. They often include local displays or indicators to provide real-time level information.

Technical Parameter:

Drawing:
