Fire Monitor

Fire Monitor

Description:

Fire monitor is an important equipment for long distance firefighting. It has 2 types: fire water monitor (PS/PSKD) and water foam fire monitor (PL/ PLKD). By using water as medium, PS/PSKD can put out the fire at a long distance. It is suitable for petrochemical enterprises, tank farms, hangars, warehouses, ports, terminals, etc. It is also an ideal vehicle-mounted fire monitor for fire-fighting trucks. PL/ PLKD can use both water and foam as medium. It is not only appropriate for what PS/PSKD is suitable for, but also appropriate for ships and fixed offshore platforms. Our company can provide fire monitor either for marine use or for inland use. And we also can provide relevant certificates: EC (RINA), CCS and CCC.

Product Superiority:

1. Large flow

2. Concentrated jetting flow and long jetting range

3. Stable performance

4. Flexible operation

Product Detail:

Model	Flow range (L/S)	Jetting range （≥m)	Rated pressure(Mpa)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
PS20	20	48	0.8	-30〜+70 or -70〜+70	0-360	25	DN100
PS30	30	55				45
PS40	40	60				45
PS50	50	65				65
PS60	60	70	1			65
PS70	70	75				65
PS80	80	80				65
PS100	100	85				105	DN150
PS120	120	90				105
PS150	150	95	1.4			155	DN200
PS180	180	100				155
PS200	200	105				155

Model	Flow range (L/S)	Jetting range(≥m)		Rated pressure (Mpa)	Foaming multiple (at 20℃)	25% drainage time/min (at 20℃)	Foam mixing ratio(%)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
		Water	Foam
PL24	24	45	40	0.8	≥6	≥2.5	6〜7 or 3〜4	-30〜+70 or -70〜+70	0-360	30	DN100
PL32	32	50	45							55
PL40	40	55	50							55
PL48	48	60	55							65
PL64	64	65	60	1						65
PL80	80	75	70							65
PL100	100	80	75							95
PL120	120	85	80							95	DN150
PL150	150	90	85	1.4						125
PL180	180	95	90							125	DN200
PL200	200	100	95							125

Model	Flow range (L/S)	Jetting range （≥m)	Rated pressure(Mpa)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
PSKD20	20	48	0.8	-30〜+70 or -70〜+70	0-360	25	DN100
PSKD30	30	55				30
PSKD40	40	60				30
PSKD50	50	65				45
PSKD60	60	70	1			45
PSKD70	70	75				45
PSKD80	80	85				45
PSKD100	100	90	1.2			55	DN150
PSKD120	120	95				55
PSKD150	150	100	1.4			105	DN200
PSKD180	180	105				105
PSKD200	200	110				105

Model	Flow range (L/S)	Jetting range (≥m)		Rated pressure (Mpa)	Foaming multiple(at 20℃)	25% drainage time/min(at 20℃)	Foam mixing ratio(%)	Pitching angle(°)	Rotation angle(°)	Weight(≤kg)	Connecting flange
		Water	Foam
PLKD24	24	45	40	0.8	≥6	≥2.5	6〜7 or 3〜4	-30〜+70 or -70〜+70	0-360	45	DN100
PLKD32	32	55	48							45
PLKD40	40	65	55							45
PLKD48	45	70	60							45
PLKD64	64	75	70	1						55
PLKD80	80	85	80							55
PLKD100	100	90	85	1.2						95
PLKD120	120	95	90							95	DN150
PLKD150	150	100	95	1.4						125
PLKD180	180	105	100							125	DN200
PLKD200	200	110	105							125

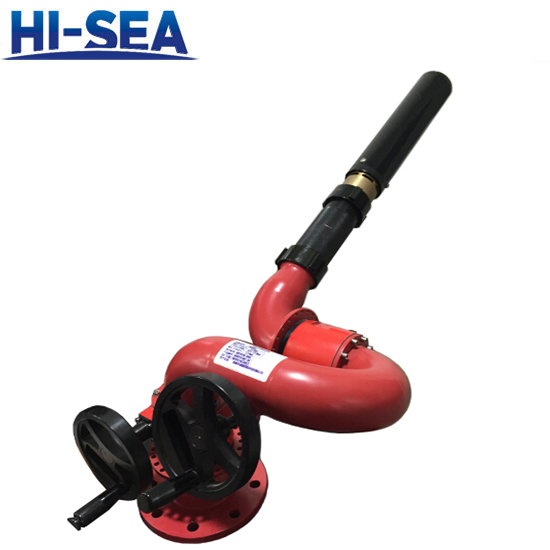

Photo of PS:

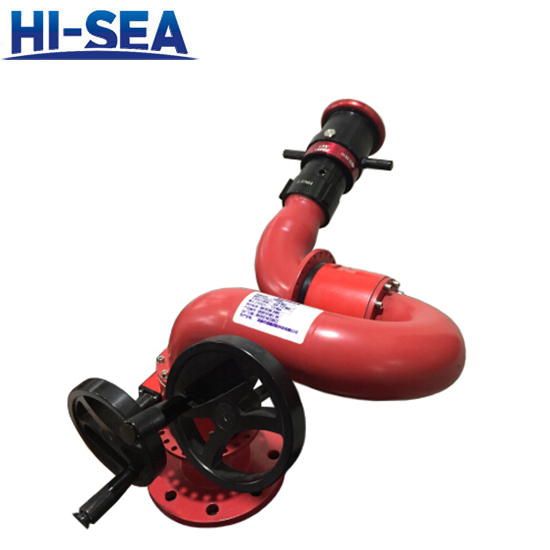

Photo of PL:

Photo of PSKD:

Photo of PLKD:
