Forge Steel Wire Rope Clips


Forge Steel Wire Rope Clips

Description

The forge steel wire rope clips which equips high quality and great ally steel and carbon steel is suitable for large diameter steel wire rope. Because it has forge ally material and usually has galvanized surface, it owns perfectly fixedness and safety.

Detail:

Material: alloy steel and carbon steel

Technology: drop forged

Surface: as requirements

Application: lifting and connecting, wire rope fittings, chain fittings, marine hardware fittings

Recommend rope diameter: 3 mm-76 mm(as requirements)

Superiority:

Anti-corrosion and good fixedness

Reliable and safety

Strength

Specification:

Rope dia.
(mm)

Min.quantity

≤19

3

>19~32

4

>32~38

5

>38~44

6

>44~60

7

Drawing of forge steel wire rope clips

Sheet of forge steel wire rope clips


Rope dia



Dimensions(mm)


Weight (kg)



(in)


(mm)

A

B

C

D

F

H

L

1/8

3

5

24

12

11

24

21

10

0.02

3/16

5

6

31

15

13

29

24

13

0.04

1/4

6

8

34

19

13

37

30

17

0.08

5/16

8

10

45

22

19

43

33

18

0.14

3/8

10

11

49

26

19

49

42

25

0.19

7/16

11

12

60

30

25

58

46

26

0.31

1/2

13

13

61

30

26

58

48

27

0.34

9/16

14

14

72

33

32

63

52

31

0.36

5/8

16

14

74

33

32

64

52

33

0.45

3/4

19

16

86

38

37

72

57

37

0.68

7/8

22

19

98

45

40

80

62

40

1.08

1

25

19

108

48

46

88

67

44

1.13

1-1/8

29

19

117

51

51

91

72

48

1.4

1-1/4

32

22

130

59

54

105

79

56

2.07

1-3/8

35

22

140

6o

59

108

79

58

2.34

1-1/2

38

22

147

66

60

112

86

64

2.66

1-5/8

41

26

161

70

67

121

92

67

3.29

1-3/4

44

29

175

78

74

134

97

78

6.03

2

51

32

195

86

78

152

113

87

6.03

2-1/4

57

32

208

98

81

162

116

100

7.07

2-1/2

64

32

227

105

87

168

119

113

8.06

2-3/4

70

32

243

112

91

174

127

124

10

3

76

38

271

121

104

194

135

136

14.4

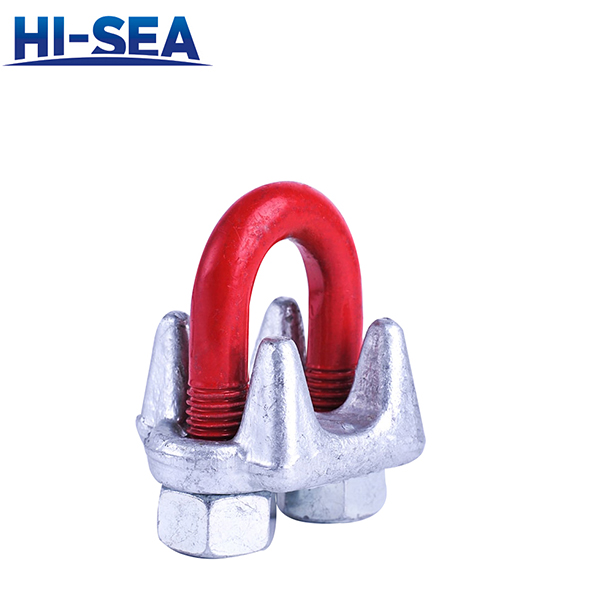

Picture of forge steel wire rope clips
