HS-VN Type Chain Hoist

HS-VN Type Chain Hoist

The Scope of Application:

Used in machine installation, products lifting and loading, unloading in industry, agriculture, construction and mineral production. It is suitable to use in the open air and no electric power works. And it can be used with all kinds of hand trolley and used as hand lifting transport carriage

Product Characteristic:

The product is safe and reliable in operation with minimum maintenance

High efficiency in mechanism, labor saving

Light in weight and carry it easily

Attractive appearance, small in size

High durability

Product Specification:

capacity		0.5	1		1.5		2		3	5	10		20
standard lift		2.5	2.5		2.5		3		3	3	3		3
running test load		7.5	15		22.5		30		45	77	150		300
Effort required to lift max. load N		231	309		320		360		340	414	414		828
Minimum distance between two hooks		270	317		399		414		465	636	798		890
No. of load chain		1	1		1		1		2	2	4		8
Load chain diameter		6	6		8		8		8	10	10		10
dimension	A	131		140		161		161	161	186		207		215
	B	127		158		187		187	210	253		398		650
	C	270		317		399		414	465	636		798		890
	Hook opening	30		34		38		41	48	52		64		85
net weight		11.25	11.5		17.4		22.2		26.2	37.7	72		160

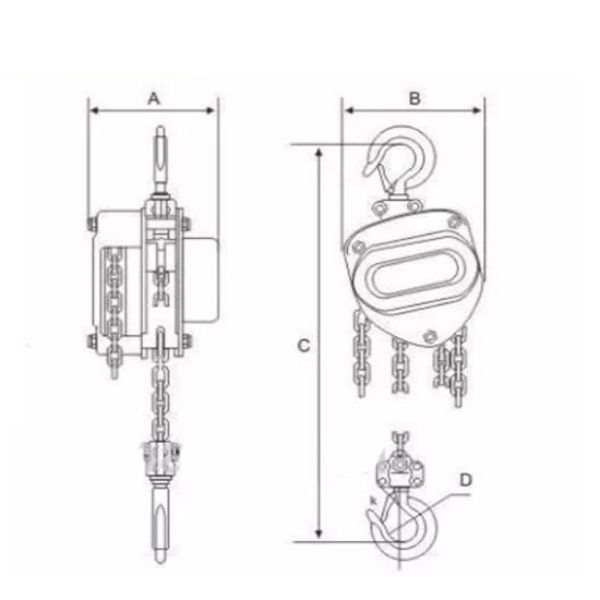

Drawing of HS-VN Type Chain Hoist:

Photo of HS-VN Type Chain Hoist:
