HSD-90 Marine Piston Type Air Horn

HSD-90 Marine Piston Type Air Horn

Description:

By absorbing international advanced design concepts and integrating foreign advanced production technology, a number of innovations have been applied in HSD-90 marine piston type air horn structure and principle, and the air compressor, air storage tank and pipeline are scientifically integrated, so that the ship has a wider design space, Construction space and use space are the most ideal modern marine fog navigation equipment at present.

Features:

1. Loud Sound: The Marine Piston Type Air Horn is designed to produce a loud and distinctive sound that can be heard from a distance. The sound is typically measured in decibels (dB), and can range from 120 dB to 150 dB depending on the specific model.
2. Durability: Marine Piston Type Air Horns are built to withstand harsh marine environments and are made of materials that are resistant to corrosion, rust, and other types of damage. This makes them a reliable and long-lasting signaling device.
3. Adjustable Tone: The tone of the Marine Piston Type Air Horn can be adjusted to produce different patterns of sound that can be used to convey different types of messages or signals. This feature makes it a versatile device that can be used in a variety of situations.
4. Easy to Operate: Marine Piston Type Air Horns are typically easy to operate and can be activated using a simple control panel or switchboard located on the bridge or other location on the vessel.
5. Compliance: Marine Piston Type Air Horns are compliant with international regulations and standards set by organizations such as the International Maritime Organization (IMO), the United States Coast Guard (USCG), and other national and international maritime agencies.

Certificate & Standard

Certificate: CCS

Standard：Rule 35, 36 of COLREG 1972 and SOLAS; IMO A. 1021(26) Resolution 2009 Alarm and Indicator Rules and 1972 the international maritime regulations for preventing collisions appendix 3 article 1 requirements, etc.

Specification of HSD-90 marine piston type air horn:

Working voltage (V)	Power frequency (Hz)	Rated power (KW)	Duty rate (%)	Center frequency/Hz
three-phase 380/440	56/60	7.5	10	90
Adapt to the captain (m)	Hear distance(miles)	Weight	Overall dimensions	1/3 octave band sound pressure level dB
≥200	2.0	240	1680×820×850	≥143

Drawing of HSD-90 marine piston type air horn:

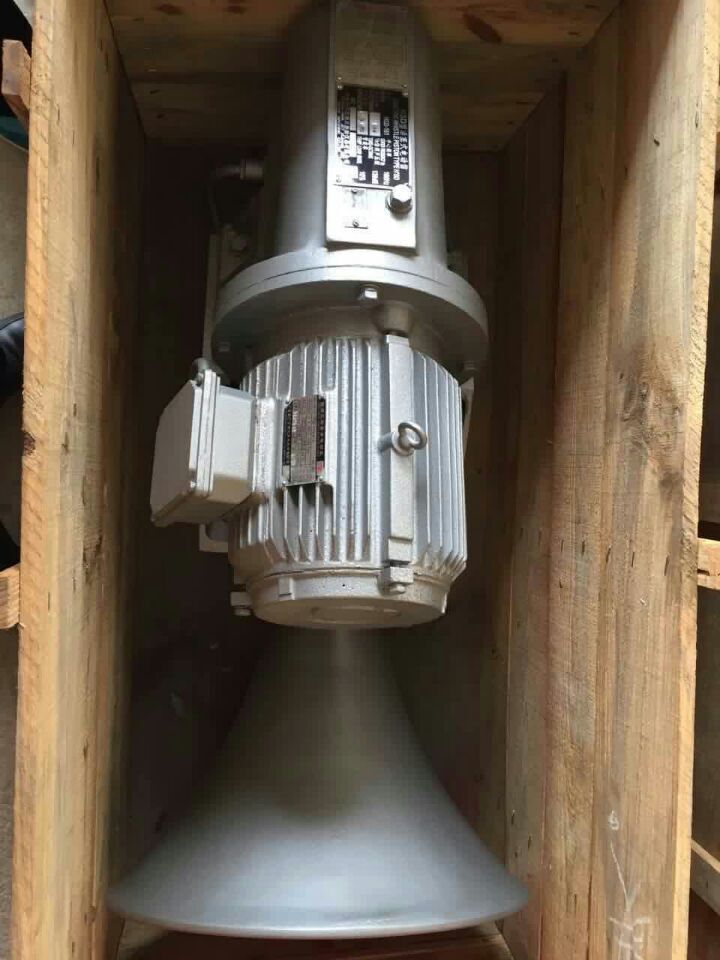

Picture of HSD-90 marine piston type air horn:
