Home > Marine Blower Fan

JCL-16 Marie Fan

JCL-16 Marie Fan

1. Advantages:

Small size and light weight.

Low noise and low vibration.

Good anti-corrosive.

Good air tightness.

Small starting torque.

Strong resistance against swing, vibration and shock.

2.Model Explanation:

JC L 16

JC----Marine or navy

L------Centrfugal fan

16-----impeller diameter is 16cm

3. Main Property Parameters:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	110	165	140	70	150	203	180	90	Ø170	Ø224	Ø200
JCL-16	700	640	550	2920	50	0.75	Y801-2H
	800	600	490
	1200	590	340
	1300	530	230
	840	910	790	3500	60
	960	860	700
	1400	840	490
	1550	750	330

Type

n1*d1

n2*d2

4-K

L₁

L₂

L₃

L₄

h₁

h₂

M₁

Weight

≈㎏

JCL-16

8-Ø10

4-Ø10

112

100

125

133

104

338

134

290

401

24.5

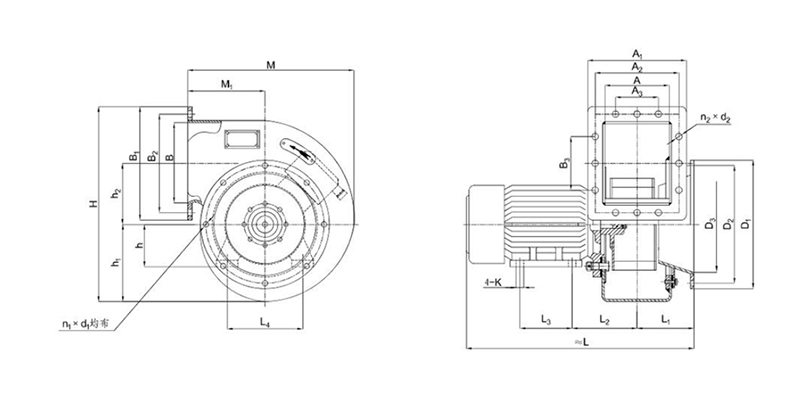

4. Outline Drawing:

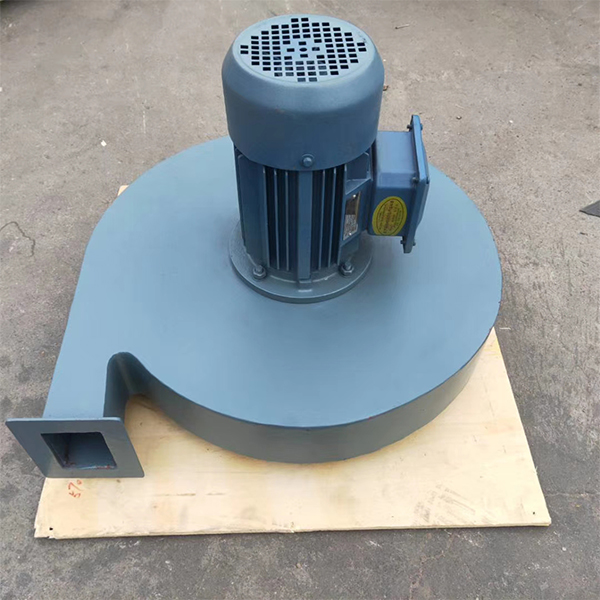

5. Product Showing:
