JCL-25 Marine Fan

JCL-25 Marine Fan

1. Applications:

Centrifugal fans are suitable for cabin air ventilating and exchanging as well as boiler ventilation on the ocean-going vessels. They are also applicable in other places that suit.

The fan is is designed and manufactured according to GB/T11864-1990 Marine Centrifugal Fan and the current Ship Building Norms.

Ambient temperature: -25℃ ~ +55℃（+50℃）

Max relative humidity: 95%

Horizontal rolling:±45°

Vertical rolling:±15°

Horizontal tilting:±15°

Vertical tilting:±10°

Vibration: existent

Impact: existent

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	185	250	220	110	250	313	285	190	Ø260	Ø333	Ø295
JCL-25	1800	440	390	1460	50	1.1	Y90S-4H
	2000	430	340
	2500	430	290
	2800	370	220
	3600	1950	1600	2920		4	Y112M-2H
	4000	1910	1570
	5000	1730	1180
	5600	1470	880
	2150	730	560	1750	60	1.1	Y90S-4H
	2400	670	540
	3000	640	440
	3300	530	320
	4300	2530	2230	3500		7.5	Y132S₂-2H
	4800	2480	1970
	6000	2480	1690
	6700	2110	1260

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-25	Y90S-4H	8-Ø12	10-Ø12	4-Ø10	136	150	100	125	80	203	155	513	205	447	487	38
	Y112M-2H			4-Ø12		163	140	190	112						582	65
	Y90S-4H			4-Ø10		156	100	140	90						507	42
	Y132S₂-2H			4-Ø12		189	140	216	132						637	84

4. Outline Drawing:

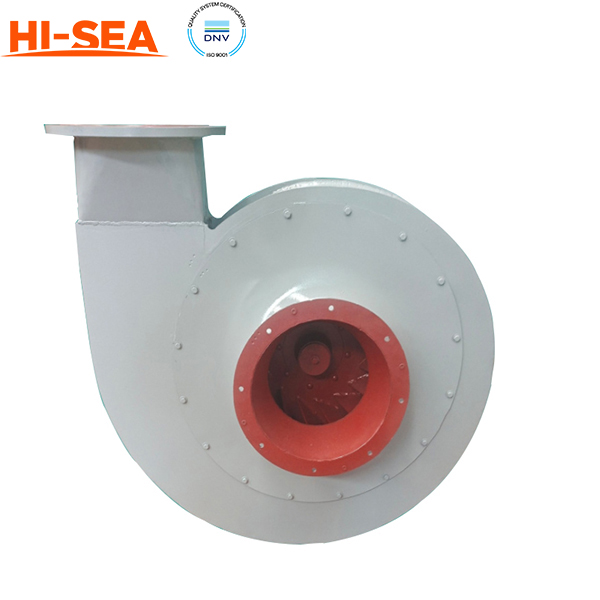

5. Product Showing:
