JCL-30 Marine Fan

JCL-30 Marine Fan

1. Preface:

JCL series centrifugal fans for marine or navy use for marine or navy use series fans are designed and manufactured according to the standards of the state for GB/11864-1990《Marine Centrifugal Fan》and the current 《Ship Building Norms》.

This series of  fans have been examined and proved up to stand by the Register of Shipping of china and have got the certificate. They are also approved by the authority of shipping equipment and research staff.

2. Features:

Small size and light weight, low noise and low vibration, good anti-corrosive, good airtight, small starting torque, strong resistance against swing, vibration and shock.

3.Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	220	296	265	160	280	354	320	210	Ø3109	Ø384	Ø350
JCL-30	2700	660	560	1460	50	1.5	Y90L-4H
	3000	650	540
	4000	640	440
	4400	540	330
	1800	420	350	1160	60	0.75	Y90S-6H
	2000	410	340
	2400	400	280
	2600	340	210
	3200	950	800	1750		2.2	Y112M-4H
	3600	930	770
	4800	920	630
	5250	780	470

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-30	Y90L-4H	8-Ø12	12-Ø12	4-Ø10	160	174	125	140	90	242	188	607	249	535	616	53
	Y90S-6H						100	140	90						551	49
	Y112M-4H			4-Ø12		181	140	160	100						606	64

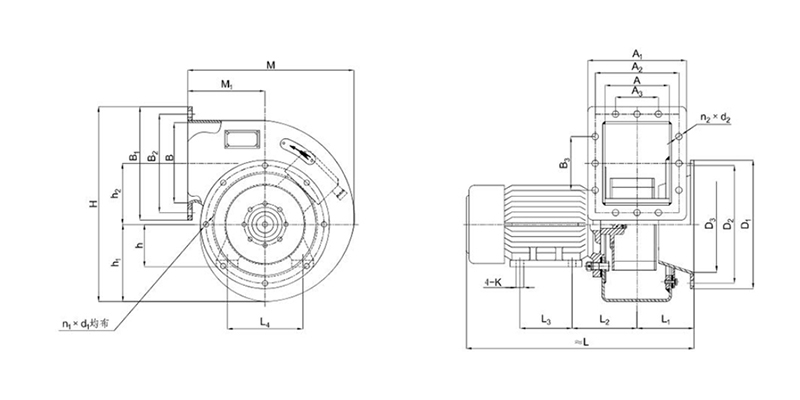

4. Outline Drawing:

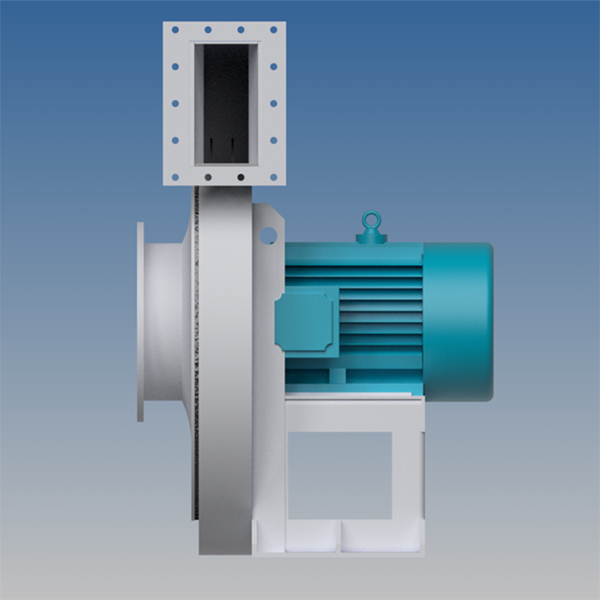

5. Product Showing:
