JCL-33 Marine Fan

JCL-33 Marine Fan

1.Description:

JCL series centrifugal fans for marine or navy use.

The series fans are designed and manufactured according to the standards of the state for  GB/T11864-1990 Marine Centrifugal Fan and the current Ship Building Norms.
This series of ventilators have been examined and provecd up to stand by the Register of Shipping of china and have got the certificate.They are also approved by the authority of shipping equipment and research staff.

JCL and  ventilators can carry ordinary air,sea air containing salt fog and air containing oil fog and other corrosives.
These ventilators are suitable for ventilation of all kinds of tanks in the naval and merchant ships.They can also be used for partly cooling.They can be used on land,either.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	240	316	285	180	310	384	350	240	Ø340	Ø414	Ø380
JCL-33	3500	750	670	1460	50	2.2	Y100L₁-4H
	4000	820	690
	5000	790	590
	6000	680	360
	2800	570	420	1160	60	1.1	Y90L-6H
	3200	520	430
	4000	500	370
	4750	430	230
	4200	1180	980	1750		4	Y112M-4H
	4800	1180	980
	6000	1140	830
	7200	980	520

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-33	Y100L₁-4H	8-Ø12	12-Ø12	4-Ø12	170	192	140	160	100	266	205	663	266	580	634	64
	Y90L-6H			4-Ø10		185	125	140	90						634	55
	Y112M-4H			4-Ø12		192	140	160	100						624	64

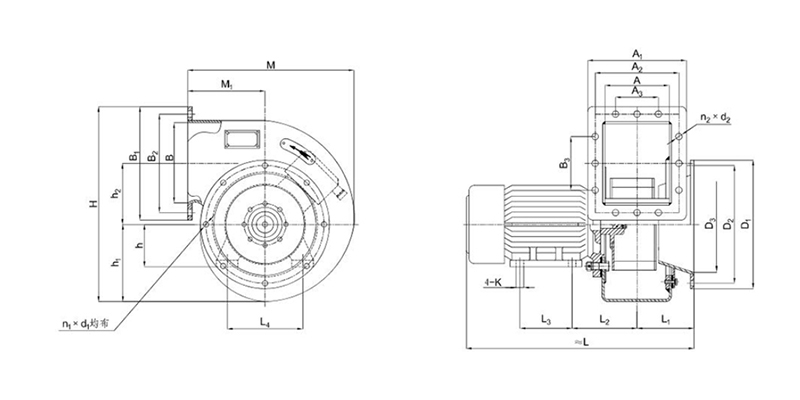

4. Outline Drawing:

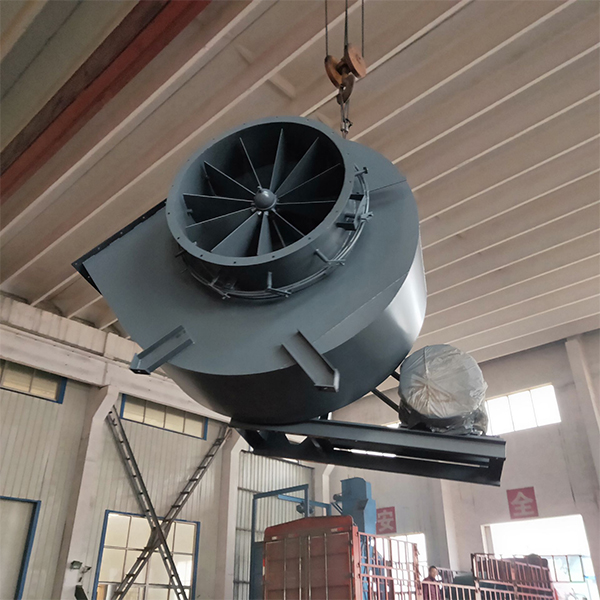

5. Product Showing:
