JCL-42 Marine Fan

JCL-42 Marine Fan

1. Introduction:

JCL series marine or navy centrifugal fans are capable of blowing air, ocean air containing salt vapor, and corrosive air which contains oil vapor and a small quantity of acid steam generated by the natural evaporation oft the batteries. They are suitable for cabin air ventilating and exchanging as well as boiler ventilation on the ocean-going vessels. They are also applicable in other places that suit.

Small size and light weight, low noise and low vibration, good anti-corrosive, good airtight, small starting torque, strong resistance against swing, vibration and shock.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	320	396	365	270	400	475	440	340	Ø430	Ø505	Ø470
JCL-42	5500	600	520	970	50	2.2	Y112M-6H
	6000	590	490
	7200	540	390
	8000	460	260
	8250	1350	1180	1460		7.5	Y132M-4H
	9000	1300	1080
	10500	1290	980
	12500	1280	880
	6600	850	750	1160	60	3	Y132S-6H
	7200	840	700
	8600	770	560
	9600	660	400
	9900	1930	1670	1750		11	Y160M-4H
	10500	1910	1600
	12500	1750	1280
	1400	1490	900

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-42	Y112M-6H	12-Ø12	12-Ø12	4-Ø12	210	239	140	190	112	340.5	266	844	331	735.5	724	100
	132M-4H					258	178	216	132						819	128
	Y132S-6H					258	140	216	132						779	136
	Y160M-4H			4-Ø15		277	210	254	160						874	178

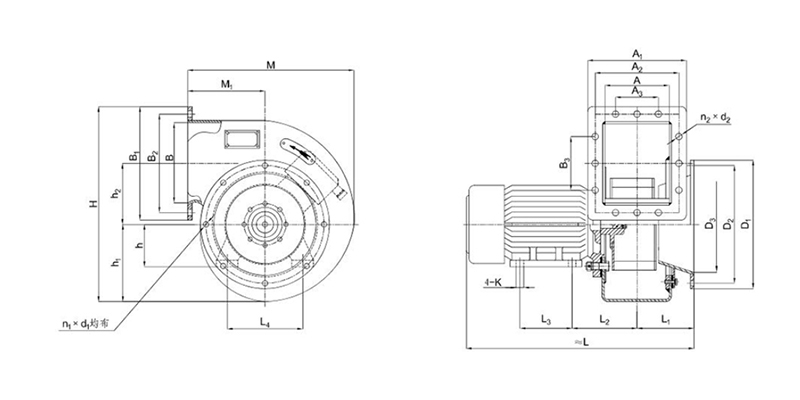

4. Outline Drawing:

5. Product Showing:
