JCL-50 Marine Fan

JCL-50 Marine Fan

1. Model Explanation:

JC   L  50

JC----Marine or navy

L------Centrifugal fan

50-----Impeller diameter is 50cm.

2.Structure:

The fan is of horizontal type with direct coupling for the motor. However, it can also be constructed into a vertical type.

The impeller is made of riveted aluminium alloy. It has been undergone both static and dynamic calibrations.

Both the casing and the inlet are made of welded common steel with airtight structure.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	360	448	408	290	470	556	515	390	Ø520	Ø606	Ø570
JCL-50	9000	870	650	970	50	5.5	Y132M₂-6H
	10000	810	640
	12000	800	560
	13000	630	410
	13500	1740	1480	1460		15	Y160L-4H
	15000	1830	1470
	18000	1790	1270
	20000	1440	930
	10500	1100	940	1160	60	7.5	Y160M-6H
	12000	1170	930
	14000	1140	810
	15500	910	590
	16000	2500	2120	1750		22	Y180L-4H
	18000	2640	2110
	21500	2580	1830
	24000	2060	1340

Type	Motor type	n1*d1	n2*d2	4-K	L₁	L₂	L₃	L₄	h	h₁	h₂	H	M₁	M	L	Weight ≈㎏
JCL-50	Y132M₂-6H	12-Ø15	14-Ø15	4-Ø12	235	278	178	216	132	402	312	992	394	870	866	166
	Y160L-4H			4-Ø15		297	254	254	160						966	205
	Y160M-6H					297	210	254	160						921	180
	Y180L-4H					400	279	279	180						1021	251

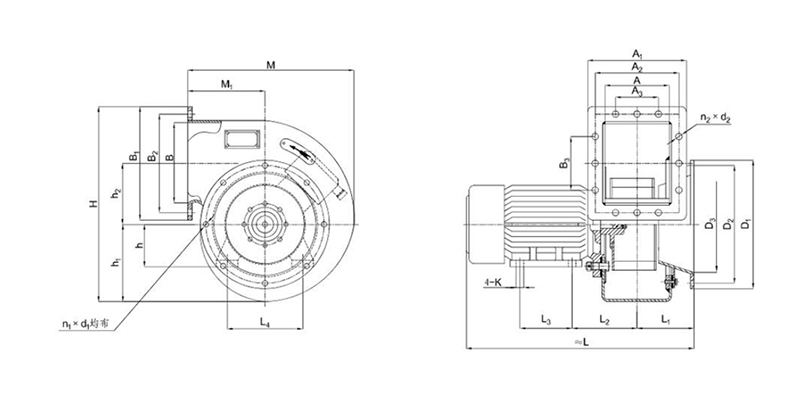

4. Outline Drawing:
