JCZ-20 Marine Fan

JCZ-20 Marine Fan

Introduction:

The JCZ-20 Marine Fan is a type of centrifugal fan designed for use in marine environments. It is used for ventilation and air conditioning systems on ships and other marine vessels. The fan is designed to be highly efficient, with a low noise level and low vibration, which is important for maintaining a comfortable and safe environment for the crew and passengers.

The JCZ-20 Marine Fan is made from high-quality materials that are resistant to corrosion and other forms of damage that can be caused by exposure to saltwater and other harsh marine conditions. It is also designed to be easy to install and maintain, with a simple and robust design that can withstand the rigors of marine use.

The fan has a maximum air flow of 20,000 cubic meters per hour, and a maximum pressure of 3,000 Pa. It can be powered by an electric motor or a diesel engine, depending on the specific application and requirements. Overall, the JCZ-20 Marine Fan is a reliable and effective solution for marine ventilation and air conditioning systems.

Main Technical Parameters:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			D₁	D₂	D₂	L	n*d		Weight ≈㎏
					Freq Hz	Power Kw	Type	Ø200	Ø240	Ø264	300	8	Ø10	18
JCZ-20	600	110	90	2920	50	0.25	Y632-2H
	800	85	55
	800	160	130	3500	60	0.55	Y712-2H							20
	1000	110	80

Outline Drawing:

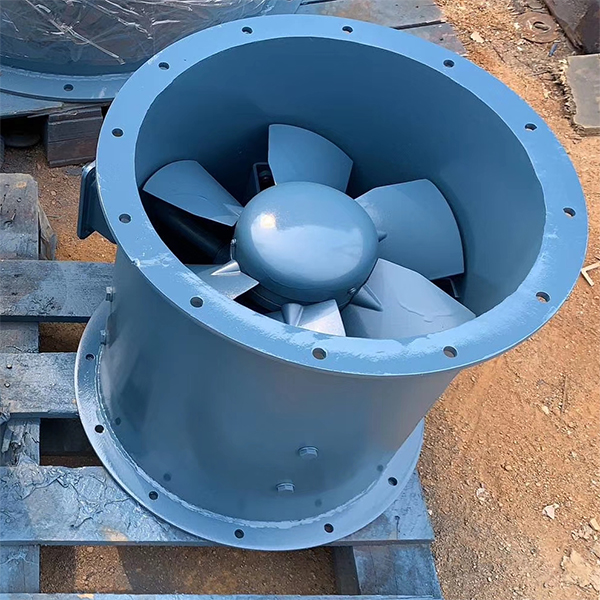

Product Showing:
