JCZ-25 Marine Fan

JCZ-25 Marine Fan

1. Application:

The JCZ-25 marine fan is a type of axial fan commonly used in marine environments to provide ventilation and cooling. It is designed to operate in harsh marine environments, and is typically made from corrosion-resistant materials such as stainless steel or aluminum.

The fan blades are designed to generate a high airflow rate with a low noise level, making it suitable for use in various applications such as engine room ventilation, cargo hold ventilation, and accommodation space ventilation. The JCZ-25 marine fan typically has a diameter of 250mm and can be installed in various orientations, including vertical and horizontal.

The fan is driven by an electric motor, which can be powered by the ship's electrical system or a separate generator. It may also have various features such as remote control, automatic shut-off, and variable speed control.

Overall, the JCZ-25 marine fan is a reliable and efficient ventilation solution for marine environments, helping to maintain a comfortable and safe atmosphere onboard ships and vessels.

Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			D₁	D₂	D₃	L	n*d		Weight ≈㎏
					Freq Hz	Power Kw	Type	Ø250	Ø290	Ø314	300	8	Ø10	26
JCZ-25	800	160	140	2920	50	0.55	Y712-2H
	1200	140	110
	1400	120	90
	1000	220	200	3500	60
	1500	220	160
	1700	180	130

Outline Drawing:

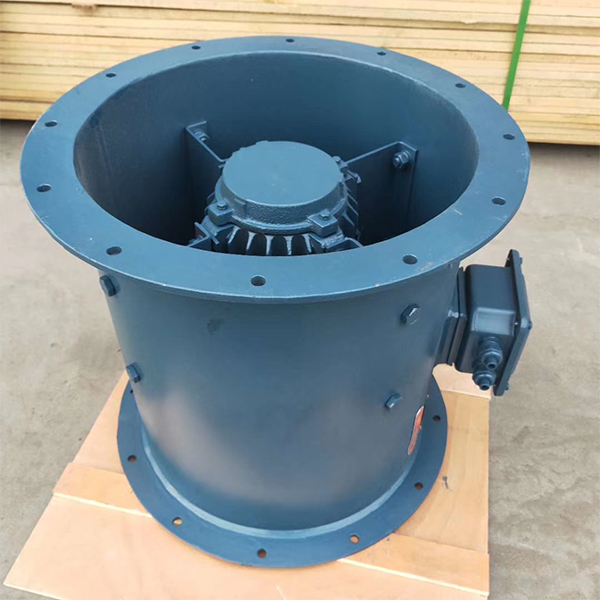

Product Show:
