JIS F7375 Marine Cast Iron SDNR Valve
JIS F7375 Marine Cast Iron SDNR Valve
1. Application
The products are used for controlling the medium to open and close ,preventing refluence in fuel oil piping, lubricating piping. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
2. Material
(1) . - Body: cast iron
(2) . - Seat: SUS / bronze
(3) . - Disc: SUS / bronze
(4) . - Stem: SUS / bronze
3. Nominal Diameter ＆ Pressure
Diameter: DN50~DN300
Pressure: 10K
4. Features
(1). Professional exporting operation team.
(2). OEM,ODM service is acceptable.Customer's special requirements will be satisfied in our factory.
(3). Excellent quality control is one of our main principles.

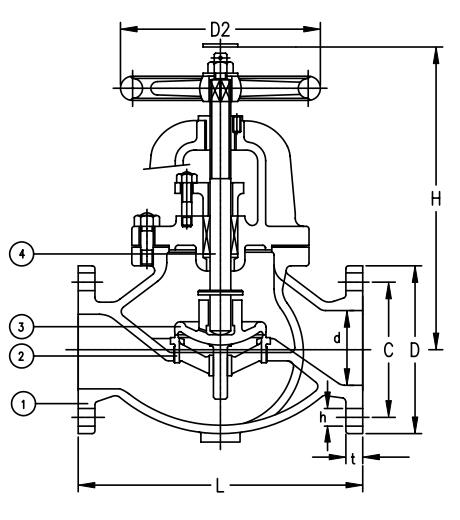

5. Main Size List
|
IMPA Code |
Model
|
L |
D
|
C
|
No. |
h |
t |
H |
D2 |
|
751131 |
F7375 10K050 |
220 |
155 |
120 |
4 |
19 |
20 |
285 |
160 |
|
751132 |
F7375 10K065 |
270 |
175 |
140 |
4 |
19 |
22 |
310 |
200 |
|
751133 |
F7375 10K080 |
300 |
185 |
150 |
8 |
19 |
22 |
320 |
200 |
|
751134 |
F7375 10K100 |
350 |
210 |
175 |
8 |
19 |
24 |
370 |
250 |
|
751135 |
F7375 10K125 |
420 |
250 |
210 |
8 |
23 |
24 |
420 |
280 |
|
751136 |
F7375 10K150 |
490 |
280 |
240 |
8 |
23 |
26 |
470 |
315 |
|
751137 |
F7375 10K200 |
570 |
330 |
290 |
12 |
23 |
26 |
555 |
355 |
|
|
F7375 10K250 |
740 |
400 |
355 |
12 |
25 |
30 |
680 |
450 |
|
|
F7375 10K300 |
840 |
445 |
400 |
16 |
25 |
32 |
770 |
500 |
6. IACS Certificate: LR, BV, ABS, CCS, RINA.
