JIS F7474 Marine Cast Steel Angle SDNR Valve
JIS F7474 Marine Cast Steel Angle SDNR Valve
1. Application
The valve is used for shipbuilding, ship repair and oil platform with high quality.Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
2. Material
(1) . - Body:cast steel
(2) . - Seat:stainless steel
(3) . - Disc:stainless steel
(4) . - Stem: stainless steel
3. Nominal Diameter ＆ Pressure
Diameter: DN32~DN250
Pressure: 20K
4. Features
(1) . Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.
(2) . We provide OEM service, accept customer label, develop the product with your drawings or samples.
(3) . We have nearly 10 years experiences on valves exporting.

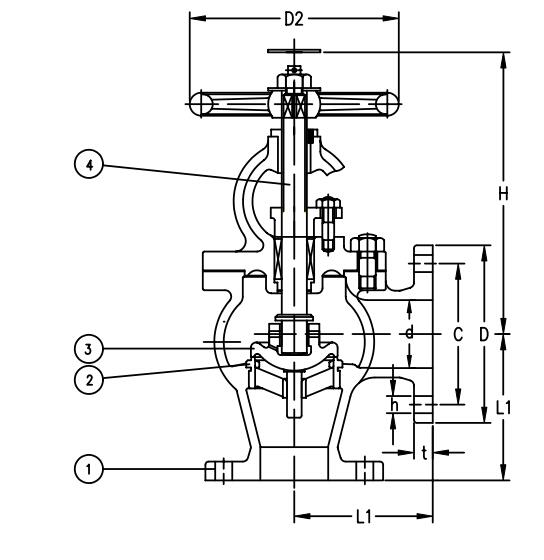

5. Main Size List
|
IMPA Code |
Model
|
L |
D
|
C
|
No. |
h |
t |
H |
D2 |
|
751246 |
7474 20K032 |
100 |
135 |
100 |
4 |
19 |
18 |
250 |
160 |
|
751247 |
7474 20K040 |
110 |
140 |
105 |
4 |
19 |
18 |
265 |
160 |
|
751249 |
7474 20K050 |
125 |
155 |
120 |
8 |
19 |
18 |
275 |
200 |
|
751249 |
7474 20K065 |
135 |
175 |
140 |
8 |
19 |
20 |
305 |
224 |
|
751250 |
7474 20K080 |
150 |
200 |
160 |
8 |
23 |
22 |
340 |
250 |
|
751252 |
7474 20K100 |
170 |
225 |
185 |
8 |
23 |
24 |
385 |
280 |
|
751253 |
7474 20K125 |
200 |
270 |
225 |
8 |
25 |
26 |
440 |
315 |
|
751254 |
7474 20K150 |
225 |
305 |
260 |
12 |
25 |
28 |
485 |
355 |
|
751255 |
7474 20K200 |
280 |
350 |
305 |
12 |
25 |
30 |
540 |
450 |
|
751256 |
7474 20K250 |
310 |
430 |
380 |
12 |
27 |
34 |
620 |
560 |
6. IACS Certificate: LR, BV, ABS, CCS, RINA.
