Manual Fire Water Monitor

Manual Fire Water Monitor

Description:

Manual fire water monitor is a manual operation firefighting equipment. It is mainly used to protect places with large area and high fire risk. Its medium is water, so it can put out fire through spraying water. This manual fire water monitor is made of high pressure resistance and high strength material. It can be installed in various firefighting trucks, fixed fire turret and fire line.

Product Superiority:

1. Flow guiding principle design

2. Multifunction

3. Safe and stable

Product Detail:

Model	Flow range (L/S)	Jetting range （≥m)	Rated pressure(Mpa)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
PS20	20	48	0.8	-30〜+70 or -70〜+70	0-360	25	DN100
PS30	30	55				45
PS40	40	60				45
PS50	50	65				65
PS60	60	70	1			65
PS70	70	75				65
PS80	80	80				65
PS100	100	85				105	DN150
PS120	120	90				105
PS150	150	95	1.4			155	DN200
PS180	180	100				155
PS200	200	105				155

Structure of Manual Fire Water Monitor:

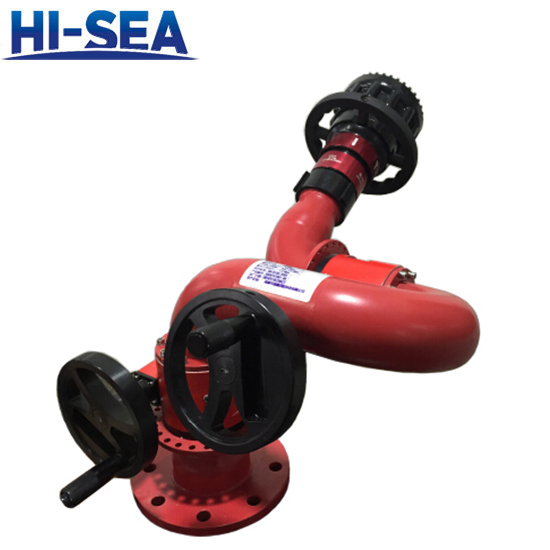

Photo of Manual Fire Water Monitor:

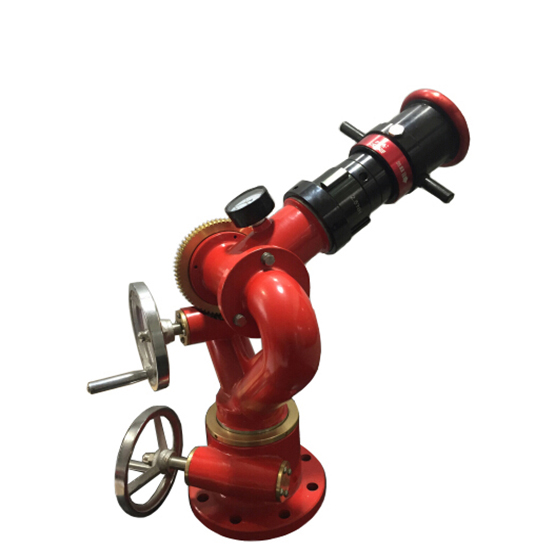

Photo 1 of Turbine Fire Water Monitor:

Photo 2 of Turbine Fire Water Monitor:
