Marine Anchor Capstan
Marine Anchor Capstan
Application
Marine anchor capstan is a capstan with a gypsy wheel and is used for mooring and anchoring. According to the power type, there are mainly electric anchor capstan, hydraulic anchor capstan. The electric anchor capstan can be delivered with a one, two or three speed electric motor. The hydraulic anchor capstan can realize the stepless control of the capstan head by hydraulic or frequency driven capstans.
The anchor gypsy wheel can be operated by means of a hand wheel what is mounted on the topside of the capstan. As an option also a capstan head can be delivered in combination with this anchor capstan. A marine anchor capstan is a type of deck machinery that is used on ships and boats to raise or lower the anchor. It is a mechanical device that uses a rotating drum to wind or unwind the anchor chain or rope.
Material
Cast steel, 316L stainless steel.
Advantages and Features
1. Compact structure, high strength;
2. Excellent performance, exquisite appearance;
3. Reliable service, high security;
4. Corrosion resistance, long lifespan;
5. Easy installation, easy maintenance;
6. With gypsy wheel;
7. Manual or hydraulic brake and clutch;
8. Vertical or horizontal;
9. Can be customized according to your requirements;
10. Approved by BV, LR, RINA...

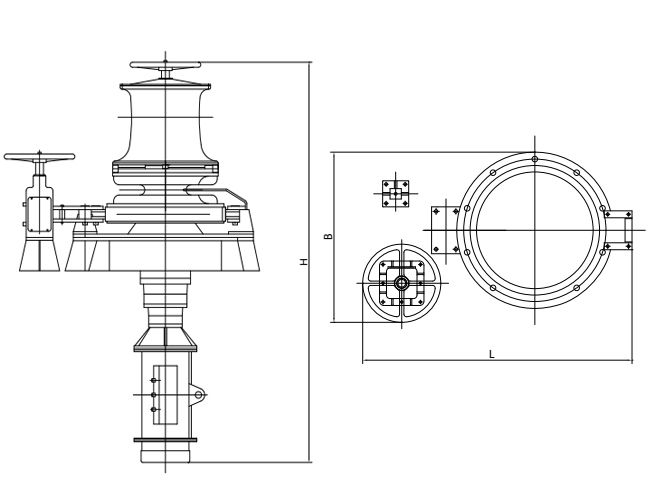

Drawing of Marine Anchor Capstan
|
Warping load (KN) |
Warping Speed (m/min) |
Chain Diameter (mm) |
Anchor Speed (m/min) |
Working load (KN) |
Motor Power (KW) |
|
5 |
≥9 |
φ12.5 |
≥9 |
6.6 |
2.2/0.75 |
|
6 |
≥9 |
φ14 |
≥9 |
8.3 |
2.2/0.75 |
|
8 |
≥9 |
φ16 |
≥9 |
10.9 |
2.2/0.75 |
|
10 |
≥9 |
φ17.5 |
≥9 |
13.0/14.6 |
3/1.3 |
|
15 |
≥9 |
φ22 |
≥9 |
20.6/23.0 |
6/2.5 |
|
20 |
≥9 |
φ24 |
≥9 |
24.5/27.4 |
8.5/3.5 |
|
25 |
≥9 |
φ28 |
≥9 |
33.3/37.2 |
8.5/3.5 |
|
30 |
≥9 |
φ30 |
≥9 |
38.3/42.8 |
11/11/7.5 |
|
40 |
≥9 |
φ36 |
≥9 |
55.1/61.6 |
16/16/11 |
|
50 |
≥9 |
φ38 |
≥9 |
61.4/68.9 |
16/16/11 |
|
60 |
≥9 |
φ40 |
≥9 |
68.0/76.0 |
22/22/16 |
|
70 |
≥9 |
φ44 |
≥9 |
82.3/92.0 |
22/22/16 |
|
80 |
≥9 |
φ46 |
≥9 |
89.9/100.5 |
30/30/22 |
|
80 |
≥9 |
φ48 |
≥9 |
97.5/100.5 |
30/30/22 |
|
90 |
≥9 |
φ50 |
≥9 |
106.3/118.8 |
30/30/22 |
|
100 |
≥9 |
φ52 |
≥9 |
114.9/128.4 |
30/30/22 |
|
Above specifications only for reference, We can supply various capstan according to your requirements. |
|||||
Finished Image of Marine Anchor Capstan
