Marine Electro-hydraulic Clamshell Bulk Grab

Marine Electro-hydraulic Clamshell Bulk Grab

The Scope of Application

Bulk carriers:38,000 to 42,000 dwt, 50,000 to 54,000 dwt, port

Product Characteristic:

The clamshells of electro-hydraulic grabs are opened and closed by hydraulic cylinders. The drive-unit for this is an electro-motor with hydraulic pump. Pump output flow can be controlled by hydraulic system pressure changes. When cylinder pressure up to rated value, pump flow will be zero and reduce pressure automatically, it will avoid temperature rise from overflow, so it can ensure grab continuously working. The drive-unit of the grab needs an electrical power-supply from the crane over a cable. The cable reel is the necessary accessory.

Product Authentication:

CCS NK ABS BV LR

Product Specification:

Volume（m³）	Motor output	Crane SWL
2.5~4	18.5KW,440V,60HZ	8T
3~5	22KW,440V,60HZ	10T
3.5~6	24KW,440V,60HZ	12T
4~8	30KW,440V,60HZ	16T
5~10	37KW,440V,60HZ	20T
6~12	45KW,440V,60HZ	24T
8~14	55KW,440V,60HZ	28T
9~16	55KW,440V,60HZ	32T
12~22	55KW,440V,60HZ	40T

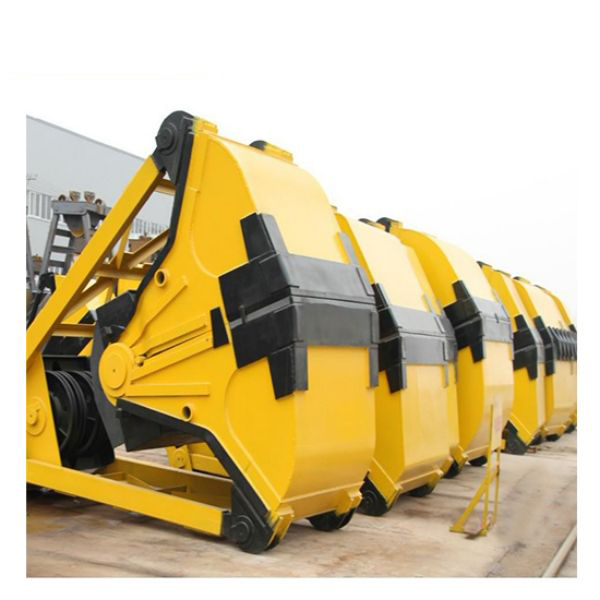

Photo One of Marine Electro-hydraulic Clamshell Bulk Grab:

Photo Two of Marine Electro-hydraulic Clamshell Bulk Grab:

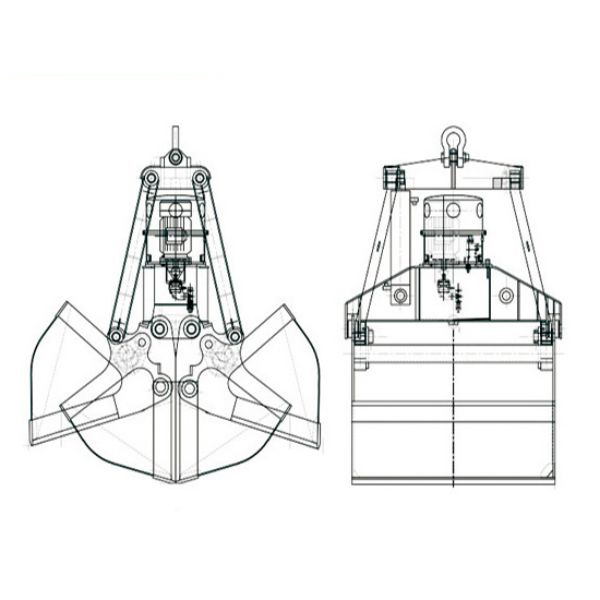

Drawing of Marine Electro-hydraulic Clamshell Bulk Grab:
