Marine Hydraulic Watertight Sliding Door
Marine Hydraulic Watertight Sliding Door
Marine Hydraulic Watertight Sliding Door applies to watertight gateways of engine room below waterline of ships and meets the regulations for the classification and construction of sea-going steel ships. It's can be hand operated on both sides of the engine room, it is designed for three-directional operation of hydraulic piping.
Features:
- Including door body, electrical box, valve unit, motor, oil cylinder, wheelhouse control panel, button box, manual pump and electrical pump.
- Test pressure: 0.1Mpa or others
- Door can be opened and closed by hand and by electric power on both sides
- Optional: class A60/A0, high pressure
- For watertight divisions under waterline

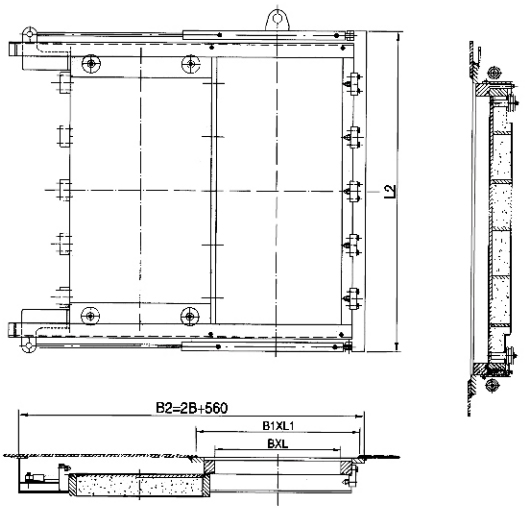

Drawing:
Specification:
|
Size of Doorway L*B |
cutout in steel wall B1*L1 | external size B2*L2 | Opening direction |
Weight KG |
| 600*1200 | 800*1400 | 1760*1500 |
L
R |
870 |
| 700*1400 | 900*1600 | 1960*1700 | 990 | |
| 800*1800 | 1000*2000 | 2160*2100 | 1100 | |
| 900*1900 | 1100*2100 | 2360*2200 | 1210 | |
| 1000*2000 | 1200*2200 | 2560*2300 | 1350 | |
| 1200*2000 | 1400*2200 | 2960*2300 | 1510 |
Optional Certificates: CCS, BV, LR, DNV.GL, ABS, NK, IRS, RINA, RMRS

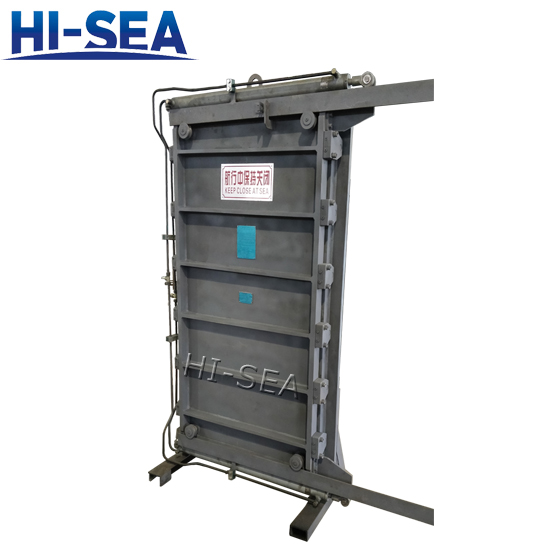

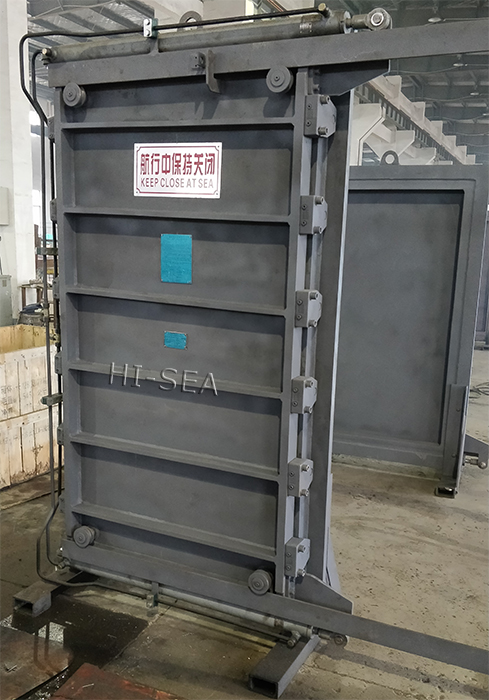

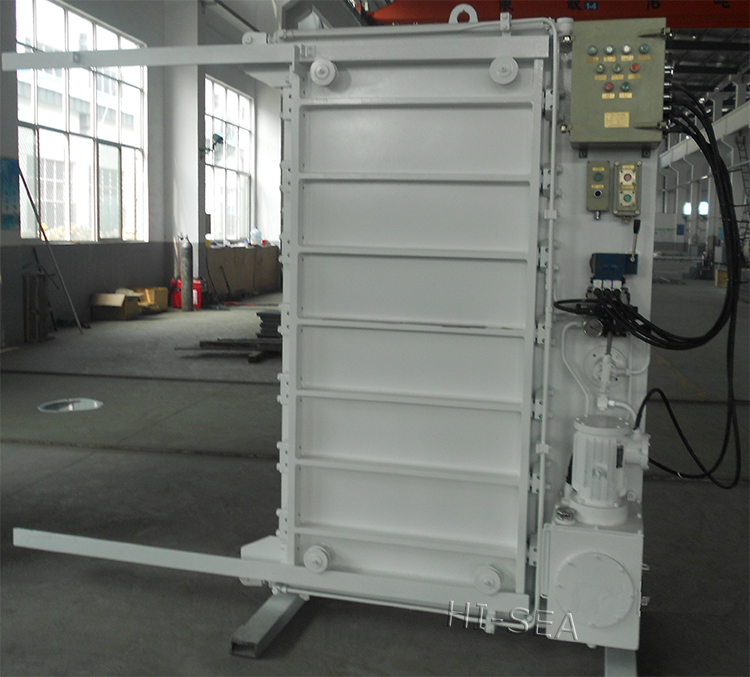

Product Showing:
