Introduction of Marine Oil-fired Boiler

Definition: Oil-fired boilers are boilers that burn fuel oil. The most commonly used oil-fired auxiliary boilers are: D-type water tube boiler, vertical straight water tube boiler and vertical horizontal smoke tube boiler.

Specifications of Marine Oil-fired Boiler

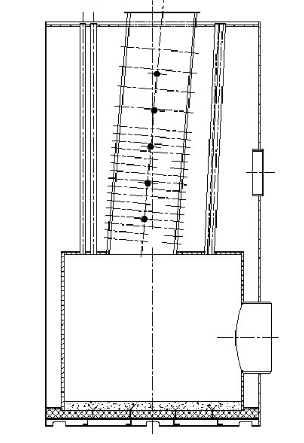

Model	Main parameters and dimensions of boiler
	heat production(kg/h)	working pressure(MPa)	outline dimension						weight(kg)
			A	B	C	D	E	n-d
LYK 166-0.3	166	0.3	1450	φ500	850	DN150	φ460	6-φ18	450
LYK250/3-80-2	250	0.2	2190	φ580	900	DN120	φ530	8-φ18	770
LYK294-0.4	294	0.4	1910	φ746	962	DN200	φ680	10-φ22	935
LYK375/4.8-90-1	375	0.5	1835	φ666	930	DN150	φ610	8-φ18	840
LYK418-0.4	418	0.4	1900	φ690	950	DN200	φ650	12-φ20	920
LYK523-0.4	523	0.4	2002	φ760	980	DN150	φ694	10-φ18	944
LYK750-0.4	750	0.4	2100	φ910	1250	DN250	φ868	12-φ22	1236
LYK840-0.4	840	0.4	2100	φ960	1200	DN250	φ910	12-φ22	1580
LYK 1000-0.4	1000	0.4	2200	φ1100	1300	DN250	φ1020	12-φ22	1560
LYK 1250-0.4	1250	0.4	2250	φ1200	1350	DN300	φ1100	12-φ22	1840
LYK 1670-0.4	1670	0.4	2400	φ1376	1420	DN300	φ1300	14-φ22	2490
LYK2880-0.4	2880	0.4	3175	φ1316	1560	DN400	φ1316	—	3536
LYK5000-0.4	5000	0.4	3860	φ1596	1688	DN400	φ1516	—	4335
