Marine Watertight Plug

Marine Watertight Plug

Product Characteristic：

Its structure and corresponding closing equipment maintain the impervious sealing performance under a certain water pressure.The single pole of plug pulled out should be not less than 4N.

Product Detail:

Material: synthestic resin

Protection Class: IP56

Conform to JISF8832,8833 standard

Type	Material	Voltage	Current	Protection class	Standard
T-1MA	Synthestic resin	250V	20A	IP56	JISF8832
T-2MA		250V	20A
T-MA		24V	10A
T-1MB		250V	20A
T-2MB		250V	20A
T-MB		24V	10A

Drawing of Marine Watertight Plug T-1MA and T-2MA:

Drawing of Marine Watertight Plug T-MA and T-1MB:

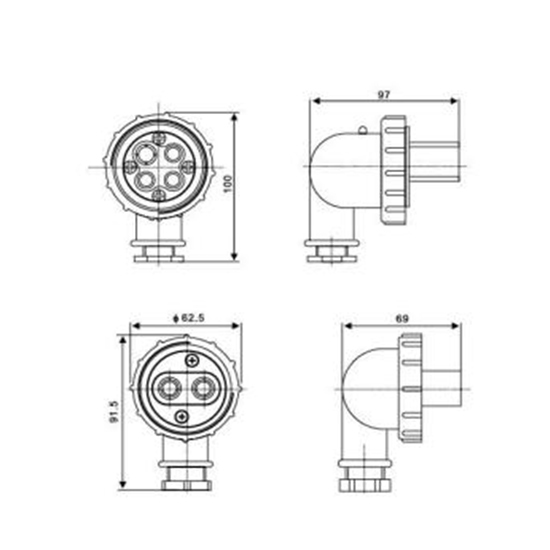

Drawing of Marine Watertight Plug T-2MB and T-MB:
