Marine Z-Drive Azimuth Thruster

Marine Z-Drive Azimuth Thruster

Application

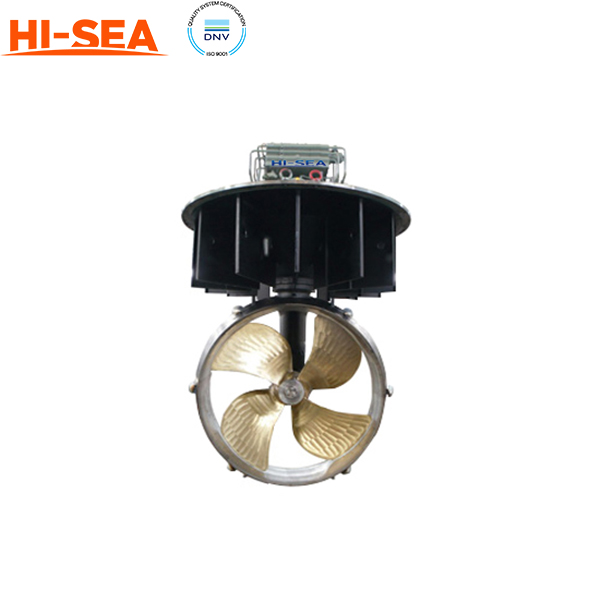

A marine Z-drive azimuth thruster is a type of propulsion system used in ships and boats that utilizes a steerable pod with a propeller mounted on a horizontal axis to provide thrust in any direction. The Z-drive configuration consists of two propellers mounted on each side of the pod, which can rotate 360 degrees around a vertical axis and are controlled by a joystick or computerized system. Overall, marine Z-drive azimuth thrusters are a highly effective solution for vessels that require maximum maneuverability and control in any direction, and can provide high thrust and power output for larger vessels and heavy-duty applications. The choice between Z-drive or other types of azimuth thrusters will depend on the specific requirements of the vessel and the application.

Features
1.Driving type:Electric motor,hydraulic motor or diesel engine.
2.Available in CP or FP propeller.
3.Improved fuel efficiency, shorter trip times, decreased maintenance downtime and vastly improved maneuverability without rudders.
4.Depending on the client's needs, the product is customizable.

Main Technical Parameter

Model		RP20	RP42	RP85	RP168	RP300	RP330	RP550	RP1470	RP1950
Max.Input Power (KW/HP)		45/61	100/135	210/286	300/400	480/650	620/843	920/1250	1250/1700	1650/2244
Max.Input Torque N.m		200	420	850	1675	2800	3300	5423	14740	19500
Max.Input Speed r/min		2300	2500	2350	2000	1800	1800	1800	1000	1000
Reduction ratio	I	1.93	2.5	2.65	3.46	3.96	4.04	5.059	3.257	3.58
	I upper	1.7	1.64	1.65	1.53	1.63	1.53	1.647	1.286	1.286
	I lower	1.13	1.52	1.62	2.26	2.43	2.64	3.071	2.533	2.79
Propeller Dia.(mm)	Max.	500	800	950	1150	1550	1500	1800	2100	2300
	Min.			700	900	1250
PAL Length (mm)	Max.	2250	2800	2800	4250	4750	5000
	Min.	350	875	980	1400	1750	1700	2600	2800	3000
Weight(incl.propeller and oil at PAL min)kg		65	190	300	1370	2100	2800	5820	11000	16500
Per 100mm extension kg.		8	9	20.4	40	40	45

Drawing of Marine Z-Drive Azimuth Thruster
