Application:

OCIMF type towing bracket is a deck equipment and it is also called as an emergency towing system together with each other marine equipment. OCIMF type towing bracket is welded on the deck and is rated to withstand the nominal diameter of the anchor chain from 54mm to 114mm. The large sliding pin withdraws the towing chain and fixes it quickly, securing it into the right place. OCIMF type bracket is produced in accordance with classification societies including LR, ABS, BV, DNV, CCS, etc. For more detailed information, please contact us.

Features of OCIMF Type Towing Bracket:

1. Model Type: OCIMF Type Towing Bracket;

2. Application: For Emergency Towing System;

3. Mounted on Deck;

4. Material: Cast steel and steel plate;

5. Certificates: CCS, ABS, DNV, NK, etc.;

7. Customized size is available.

Drawing of OCIMF Type Towing Bracket:

Parameters of OCIMF Type Towing Bracket:

Nominal Dia.(mm)	Dimensions(mm)										Mass (kgs)	SWL (kN)	MBL (kN)
	A	B	C	D	E	F	G	H	K	R
54	500	555	20	300	259	140	78	118	80	110	118	1000	2000
64	600	625	28	360	300	175	88	122	100	135	184	1500	3000
76	720	800	30	430	360	200	112	170	110	160	312	2000	4000
102	940	1000	40	560	470	260	144	216	140	210	886	3200	6400
114	1100	1180	50	628	548	290	162	250	170	235	1184	3800	7600

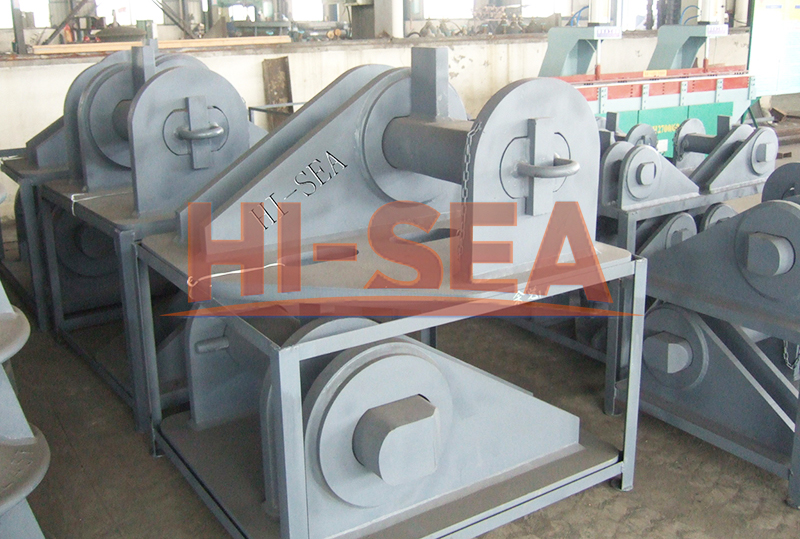

OCIMF Type Towing Bracket in Factory:
