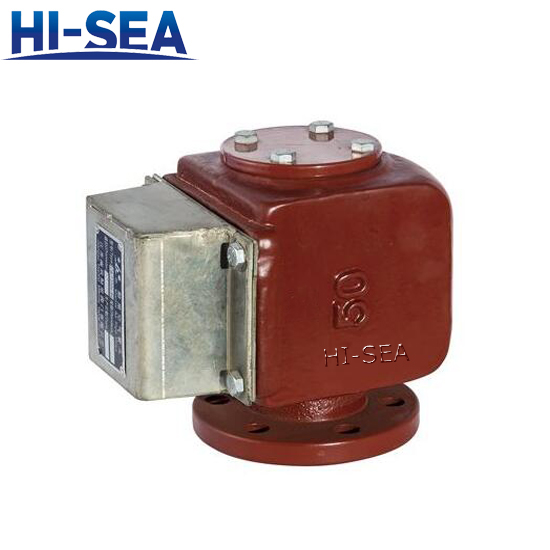

Oil Tank Air Vent Head

Oil Tank Air Vent Head

1. Application

Oil Tank Air Vent Head can through inhalation and breathing to let the air pressure in the cabin close to the atmospheric pressure,so that the pressure is kept within the design pressure of the tank.

2. Material

(1) body: fc200
(2) float: SUS316
(3) rubber ring: nbr
(4) gasket: non-asbestos
(5) cover: SUS400
(6) screen cover: SUS304

To meet the different needs of customers, the special materials can be customized according to one's request processing.

3. Features

(1) Strict quality control to ensure product quality.

(2) Flexible customization according to business requirements.

4. Specification

DN	d	D	C	NO-h	t	a	H	H1
50	50	130	105	4-15	14	7	184	176
65	65	155	130	4-15	14	7	204	203
80	80	180	145	4-19	14	7	225	238
100	100	200	165	8-19	16	8	265	271
125	125	235	200	8-19	16	8	304	323
150	150	265	230	8-19	18	9	339	378
200	200	320	280	8-23	18	9	434	493

5. IACS Certificate: LR, ABS, CCS, DNV, RINA, NK, BV.
