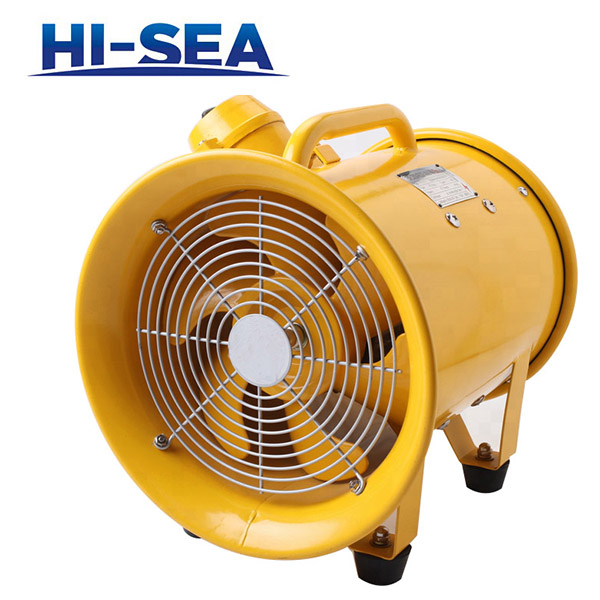

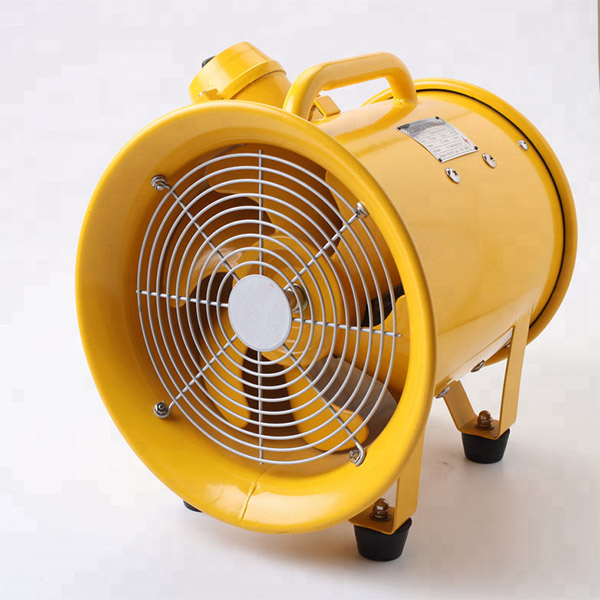

Portable Marine Ventilator

Portable Marine Ventilator

Introduction:

This series of ventilators have the advantages of large wind rate, high wind pressure, speed rotation and easy movement.

With flexible ventilation duct, it can be used for supply and exhaust in long-distance or deep working place, mainly applied on the communication cable maintenance, ship building and repairing, municipal underground engineering, big capacity tank container and chemical industry factory.

Features:

The portable ventilator is of attractive appearance , reasonable structure, light volume and schlepped conveniently.

It has the stable capacity, light weight for 200-350mm diameter.

Moreover, it's used safely by the one-piece switch under the handle.

Model	Size mm	Voltage V	Phase	Freq Hz	Power W	Speed r/min	Air Volume m³/h	Total pressure Pa	Noise dB(A)	Weight Kg
SHT-20	200/8’’	220	1	50/60	230	2800/3300	25	245	60	7.6
SHT-25	250/10’’	220	1	50/60	320	2800/3300	43	291	68	8.5
SHT-30	300/12’’	220	1	50/60	520	2800/3300	65	370	78	11
SHT-35	350/14’’	220	1	50/60	750	2800/3300	82	598	80	20
SHT-20	200/8’’	110	1	50/60	230	2800/3300	25	245	60	7.6
SHT-25	250/10’’	110	1	50/60	320	2800/3300	43	294	68	8.5
SHT-30	300/12’’	110	1	50/60	520	2800/3300	65	370	78	11
SHT-35	250/14’’	110	1	50/60	750	2800/3300	82	598	80	20
Adjustable stand is available upon requests

Product Showing:
