Portable Self-oscillating Fire Monitor

Portable Self-oscillating Fire Monitor

Description:

Portable self-oscillating fire monitor is controlled by PLC (Programmable Logic Controller) system. This system has continuous and adjustable control to self-oscillating angle from 0 to 50 degrees. During the fire extinguishing process, it can be adjusted to the appropriate self-oscillating angle according to the specific conditions. This fire monitor consists of fire monitor body and head, control box, remote control and charger.

Product Superiority:

1. Long-range control

2. Self-oscillating

3. Safe and reliable

Product Detail:

PSKDY：

Model	Flow range(L/S)	Jetting range （≥m)	Working pressure(Mpa)	Pitching angle(°)	Rotation angle(°)	Voltage	Remote control distance(≥m)	Weight(≤kg)	Connecting way
PSKDY30	30	55	0.8	+30～＋70	±90	24V/DC	150	30	KY80 or KYK80
PSKDY40	40	60
PSKDY50	50	65
PSKDY60	60	70	1
PSKDY80	80	85	1.1

PLKDY:

Model	Flow range(L/S)	Jetting range(≥m)		Working pressure (Mpa)	Pitching angle(°)	Rotation angle(°)	Voltage	Remote control distance(≥m)	Weight(≤kg)	Connecting way
		Water	Foam
PLKDY32	32	55	48	0.8	+30～＋70	±90	24V/DC	150	30	KY80 or KYK80
PLKDY48	48	70	60
PLKDY60	60	75	70

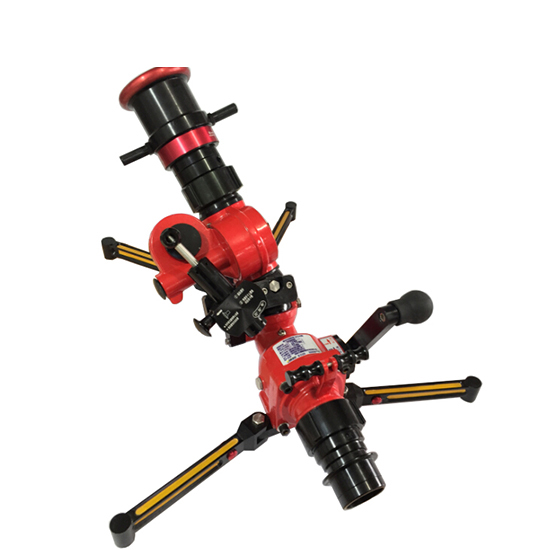

Picture 1 of PSY (Hydraulic Drive):

Picture 2 of PSY (Hydraulic Drive):

Picture 1 of PSKDY (Electric Drive):

Picture 2 of PSKDY (Electric Drive):

Picture 1 of PLKDY (Electric Drive):

Picture 2 of PLKDY (Electric Drive):
