Ship Aluminum Cabin Hollow Door

Ship Aluminium Cabin Hollow Door

Introduction

Ship Aluminium Cabin Hollow Door can be used to cabins of various kinds of ships and naval ships. This type of doors was made of aluminium alloy with new structure and good weather tightness, the door meets the requirements of CB/T3281-1997. Surface of the door is anodized finish or PVC covered. Four types of this door can be chose, nothing, with escape, with ventilation, and with square window. Customization is also available. Please feel free to contact us if you're interested with this product.

Parts

Configuration Differences

Part name	Material	Pros & Cons
Door panel	LF5	Good plasticity, moderate heat treatment strength, good welding performance and gorgeous color on the surface after anodizing treatment.
	Q235-A	Good toughness and plasticity, certain elongation, hot workability, fireproof.
Door frame	LF5	Good plasticity, moderate heat treatment strength, good welding performance and gorgeous color on the surface after anodizing treatment.
	Q235-A	Good toughness and plasticity, certain elongation, hot workability, fireproof.
Hinge	SS304	rustproof, less brittle
	Q235-A	Good toughness and plasticity, certain elongation, hot workability.
Locking device	SS304	rustproof, less brittle
	Q235-A	Good toughness and plasticity, certain elongation, hot workability, fireproof. Welding performance is weak than Q235-B
	Q235-B	Good welding performance, Good low temperature toughness
Options according to user requirements
Parts	Remark	Features
Escape	Stainless steel
Ventilation	LF5
Window	Toughened glass

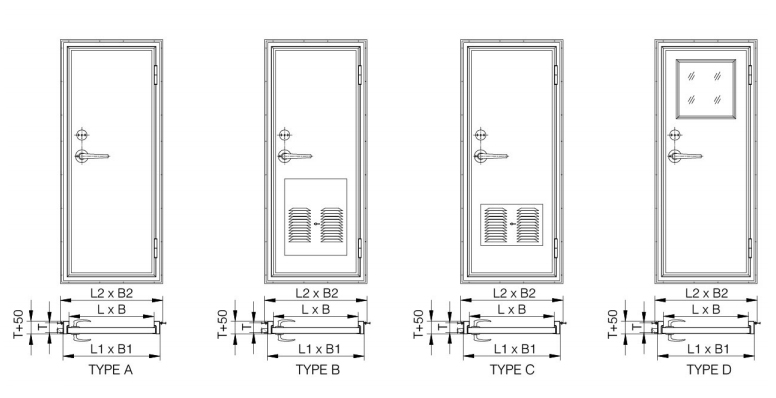

Drawing:

Dimensions:

type		opening	nominal size L*B	cutout in steel wall L1*B1	external size L2*B2	lining thickness T	frame type
A	nothing	LO RO LI RI	1600*600	1685*685	1724*724	Up to buyer's choice	profiled bar K1 rimmed frame K2
			1650*650	1735*735	1774*774
			1700*700	1785*785	1824*824
			1750*800	1835*885	1874*874
B	with escape		1600*600	1685*685	1724*724
			1650*650	1735*735	1774*774
			1700*700	1785*785	1824*824
			1750*800	1835*885	1874*874
C	with ventilation		1600*600	1685*685	1724*724
			1650*650	1735*735	1774*774
			1700*700	1785*785	1824*824
			1750*800	1835*885	1874*874
D	with square window		1600*600	1685*685	1724*724
			1650*650	1735*735	1774*774
			1700*700	1785*785	1824*824
			1750*800	1835*885	1874*874

Optional Certificates: CCS, NK, DNV.GL, BV, LR, ABS, RINA, RMRS, IRS

Products Showing:
