Stainless Steel Side Wall Grille Louver CKS

Stainless Steel Side Wall Grille Louver CKS

1. Introduction:

single-layer louver tuyere can be adjusted up and down the wind direction, the return air inlet can be used with the tuyere filter net, the joint Angle can be adjusted, there are ABS plastic fixed bracket between the blades.  The fixed air filter can be removed from the guide rail during cleaning, and then pushed into the guide rail for further use.

2. Features:

Air inlet has side inlet and top inlet, and the flange mouth has square and circular structures.
with strong versatility, simple construction, less investment and other advantages;

Ensure the jet speed of airflow and prevent eddy current
3. Main Parameters:

A*B	C*D	A*B	C*D
200*200	252*252	600*300	652*352
300*200	352*252	400*400	452*452
400*200	452*252	500*400	552*452
500*200	552*252	600*400	652*452
300*300	352*352	500*500	552*552
400*300	452*252	600*400	652*552
500*300	552*352	700*500	752*552

Note: In addition to tables, special sized products are supplied according to customer requirements.

Generally, louver blades parallel to long sides of louver, special sized products are supplied according to customer requirement, if any.

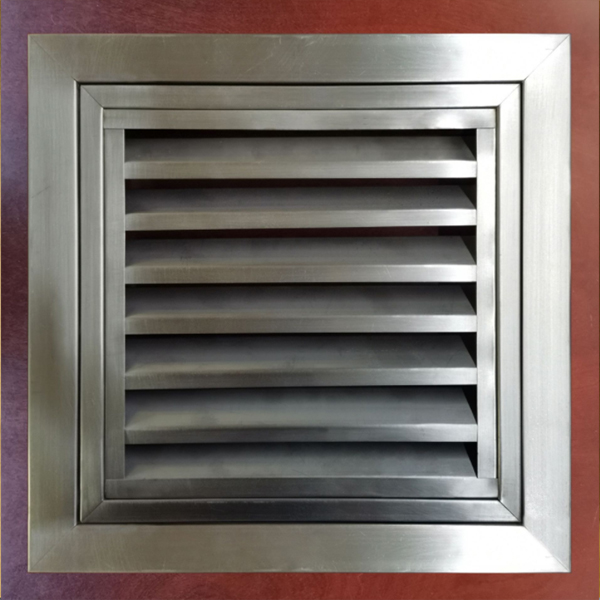

4. Product Showing:
