Steel Wire Rope
Steel Wire Rope
Selection of steel wire rope:
1.Diameter: 1 mm-220 mm
2.Function: Marine steel wire rope,Elevator steel wire rope,Tower crane steel wire rope,Towboat steel wire rope, etc.
3.Material: 316 stainless steel wire rope, Ungalvanized steel wire rope, etc.
4.lay direction: Right hand ordinary lay steel wire rope,Left hand ordinary lay steel wire rope,Right hand lang's lay steel wire rope,Left hand lang's lay steel wire rope,etc.
5.Surface treatment: Ungalvanized steel wire rope, Polished steel wire rope, Bright steel wire rope,Oiled steel wire rope, etc
Product List：
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Large Diameter steel wire rope
|
|
|
|
Safety Note:
The technical parameters such as lifting load, safety coefficient, and the lifting capacity of the lifting equipment should be taken into consideration when selecting the strength class of wire rope. Do not blindly choose high strength and high breaking force wire rope, this may compromise results.
Standard And Certification:
Standard: GB8919，GB/T 20067,ISO, ASTM, EN, JIS, etc.
Certificate:API, DNV, LR, BV, CCS, ABS, CE.
The Main processes of wire rope production:
Basic Information on Wire Rope:
Wire Rope Application Recommendation:
|
|
|
|
|
Usage |
Rope type |
Structure |
Comments |
|
Hoisting in vertical shafts |
Triangular strand wire rope |
6VX37S, 6VX37，6VX34，6VX30，6VX21，6VX43 |
|
|
Equal laid wire rope |
6X19S, 6X19W, 6X25Fi, 6X26WS, 6X29Fi, 6X31WS, 6X36WS, 6X41WS |
Language’s lay is recommended |
|
|
Multi-layer strand wire rope |
18X7, 17X7, 35WX7, 24WX7, |
For use in vertical shafts with wire rope guide |
|
|
6Q×19＋6V×21, 6Q×33＋6V×21 |
|||
|
Shafts excavation
|
Multi-layer strand wire rope, un-shaped stand wire rope |
6Q×33＋6V×21，18X7, 17X7, 34X7, 36X7, 6Q×19＋6V×21，4VX39S，4VX38S，35WX7, 24WX7 |
|
|
Balanced ropes for use in vertical shafts |
Steel wire rope |
6X37S, 6X36WS，4VX39S, 4VX48S |
Use ordinary lay only |
|
Multi-layer strand wire rope |
18X7, 17X7, 34X7, 36X7, 35WX7, 24WX7 |
Use ordinary lay only |
|
|
Hoisting in inclined shafts(winch) |
Triangular strand wire rope |
6VX18，6VX19 |
|
|
Steel wire rope |
6X7，6X9W |
Language’s lay is recommended |
|
|
Blast furnace hoist |
Triangular strand wire rope |
6VX37S, 6VX37，6VX34，6VX30，6VX21，6VX43 |
|
|
Equal laid wire rope |
6X19S, 6X19W, 6X25Fi, 6X26WS, 6X29Fi, 6X31WS, 6X36WS, 6X41WS |
|
|
|
Vertical shafts guide and ropeway |
Triangular strand wire rope |
6VX18,6VX19 |
|
|
Multi-layer strand wire rope |
18X7, 17X7 |
Language’s lay is recommended |
|
|
Winch on slope |
Triangular strand wire rope |
6VX37S, 6VX37，6VX34，6VX30,6VX43 |
|
|
Equal laid wire rope |
6X36WS, 6X37S, 6X41WS, 6X49SWS, 6X55SWS |
Language’s lay is recommended |
|
|
Oil exploration |
Equal laid wire rope |
6X19S, 6X19W, 6X25Fi, 6X26WS, 6X29Fi, 6X31WS, 6X36WS
|
May use steel core wire ropes |
|
Conveyer belt, telpher, cable railway |
Equal laid wire rope |
6X19S, 6X19W, 6X25Fi, 6X26WS, 6X29Fi, 6X31WS, 6X36WS, 6X41WS
|
Language’s lay is recommended |
|
Excavating machinery |
Equal laid wire rope |
6X19S+IWR, 6X25Fi+IWR, 6X19W+IWR, 6X29Fi+IWR, 6X26WS+IWR, 6X31WS+IWR, 6X36WS+IWR, 6X55SWS+IWR, 6X49SWS+IWR, 35WX7, 24WX7 |
Language’s lay is recommended |
|
Triangular strand wire rope |
6VX37S, 6VX37，6VX34，6VX30,6VX43 |
|

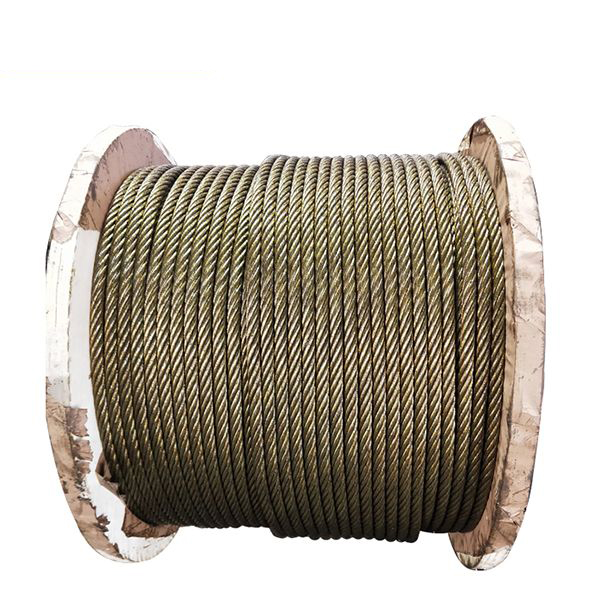

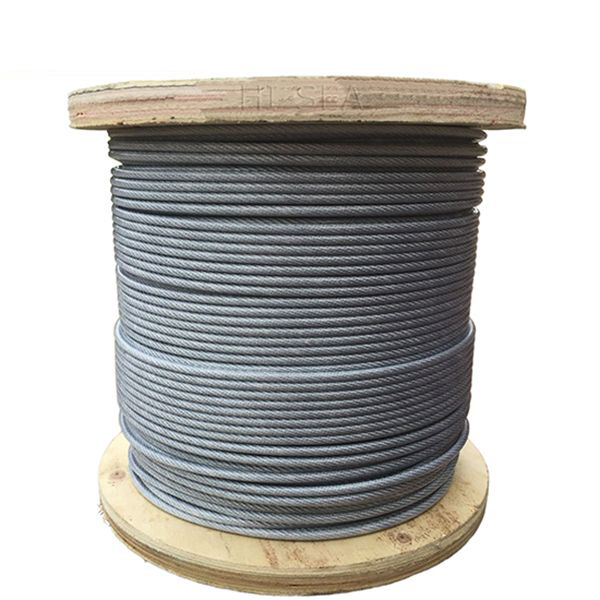

Picture of the steel wire rope:
