Introduction:

Stevshark anchor is also called Stevshark MK5 anchor, MK5 anchor, Drag anchor, Offshore anchor, Drag Embedment anchor,etc. Stevshark anchor is a kind of super high holding power anchor and is widely used in offshore mooring and platform mooring. It does well in hard soil such as limestone, calcarenite, very dense sands and coral.

Drawing of Stevshark Anchor:

Main Model of Stevshark Anchor:

Nominal Weight(kg)	Size(mm)
	A	C	E	F	G	H
300	927	160	1101	1828	1968	757
500	1035	179	1233	2040	2197	845
1000	1304	226	1562	2570	2770	1064
1500	1495	261	1802	2944	3174	1230
2000	1646	285	1969	3244	3494	1343
3000	1886	332	2279	3711	4001	1540
4000	2074	359	2431	4083	4403	1692
5000	2238	396	2697	4402	4746	1835
6000	2374	411	2841	4680	5040	1988
7000	2490	443	3001	4900	5280	2045
8000	2619	464	3156	5151	5553	2139
9000	2719	471	3253	5359	5772	2219
10000	3822	501	3400	5549	5932	2305
12000	3000	533	3614	5893	6353	2450
14000	3159	562	3805	6209	6694	2580
15000	3232	575	3804	6354	6850	2640
16000	3282	569	3927	6469	6967	2673
18000	3436	612	4139	6753	7280	2806
20000	3559	634	4287	6994	7540	2907
22000	3674	654	4426	7220	7784	3001
25000	3834	684	4619	7535	8123	3132
30000	4075	727	4919	3003	8635	3329

Features:

Type: Stevshark Anchor;

Material: Q345C Steel Plate;

Nominal Weight: 300KG-30000KG;

Finish: Bituminous Paint;

Packing: Carton, Plywood Case, Plywood Pallet or Nude Packing;

Certificates: CCS, ABS, BV, LR, NK, RINA,etc.

For Production Process of Welding Anchor Please Click the Link as Follows:

http://www.cqhisea.com/newsshow.php?cid=4&id=98

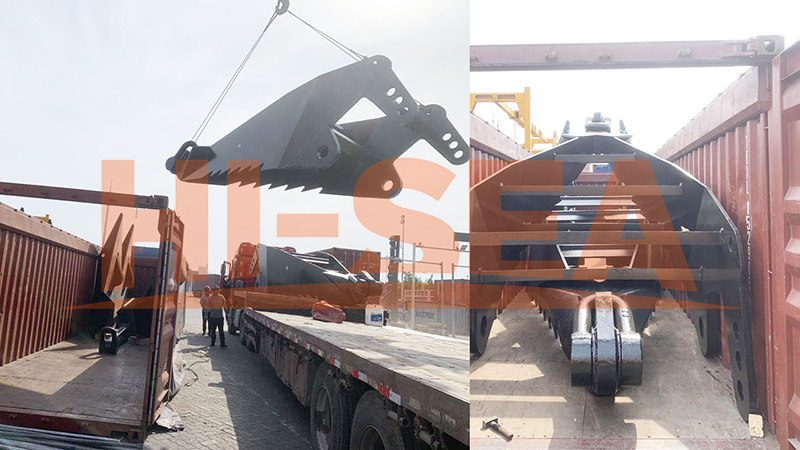

Stevshark Anchor Ready to Ship:
