Home > Marine Bollard

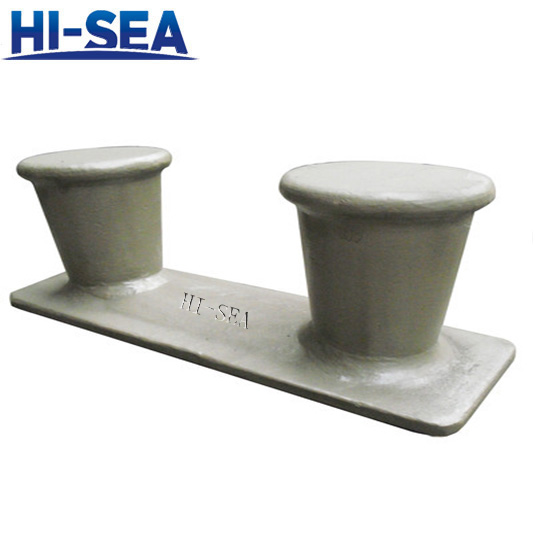

The USA Mooring Bollard

The USA mooring bollard

The USA Mooring Bollard

Description:

The USA mooring bollard is one type of double bitts mooring bollard. It has two nominal diameters DF-491, DF-498. Besides, we can also provide you the following bollards: T-head bollard, J type bollard, R type bollard, single bitt bollard, double bitts bollard, welded inclined bollard, DIN82607 bollard, JIS F2001 bollard, GB554-83 bollard, GB554-96 bollard(simple bollard,inserted bollard,cross bollard), GBT 10106-88 cross bollard, etc. For more information, please do not hesitate to contact us.

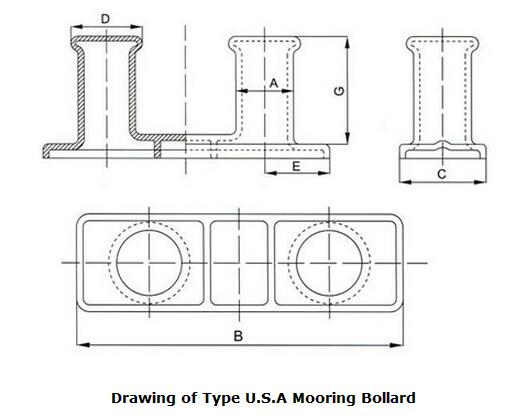

Drawing of The USA Mooring Bollard:

The USA mooring bollard

Nominal Dia.	Wight (kg)	Size(mm)
Nominal Dia.	Wight (kg)	A	B	C	D	E	F
DF-491	449	305	1524	457	381	343	571
DF-498	612	355	1676	533	444	330	667

Features:

Model Type: The USA Mooring Bollard

Material: Casting Steel

Nominal Dia.: DF-491,DF-498

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.

Mooring Bollard in Factory:

bollard
