Throw-Over Board Inflatable Liferaft For Yacht

Throw-Over Board Inflatable Liferaft For Yacht

Description:

The inflatable liferaft is stowed in the liferaft container on the deck. When people pull the painter line, the liferaft is inflated in the sea. After tests, the result shows that this liferaft can withstand temperature from -30°C to +65°C and drop from a height of 24m. This life raft can perform ideally in either the icy water of the northern sea or warm water of the tropical sea.

Application of the product：yacht

Approval standard：

1.ISO 9650-1:2005(E) & ISO 9650-3:2005(E)

2.ISO 9650-2:2005(E) & ISO 9650-3:2005(E)

Approval: GL

Packing: Valise and canister

Specification:

Length（mm）	Width（mm）	Height（mm）	Weight（Valise）	Weight（canister）	Carrying Capacity
1680	1680	1200	51	41	4
1460	1460	1150	34	24
1980	1980	1250	66	49	6
1740	1740	1200	40	29
2250	2250	1300	74	60	8
1960	1960	1250	50	33
2490	2490	1350	88	71	10
1960	1960	1250	52	36
2700	2700	1400	95	79	12

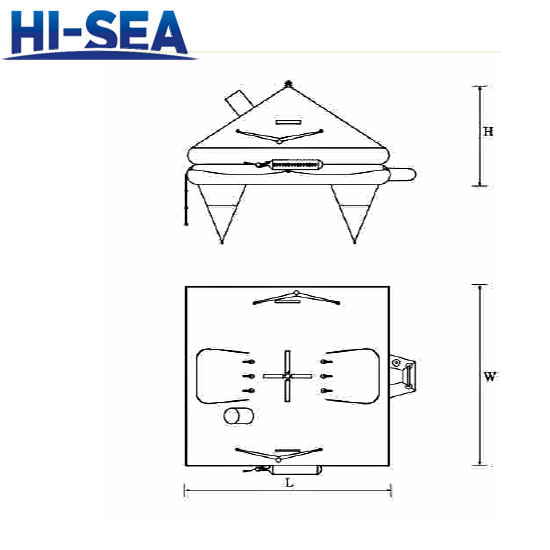

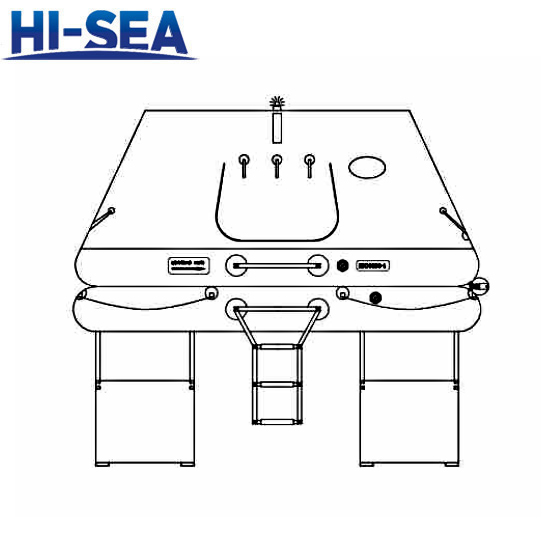

Drawing For Throw-Over Board Inflatable Liferaft

Valise And Canister(It Can be customized according to customer requirements)
